Plant cylinder subtype

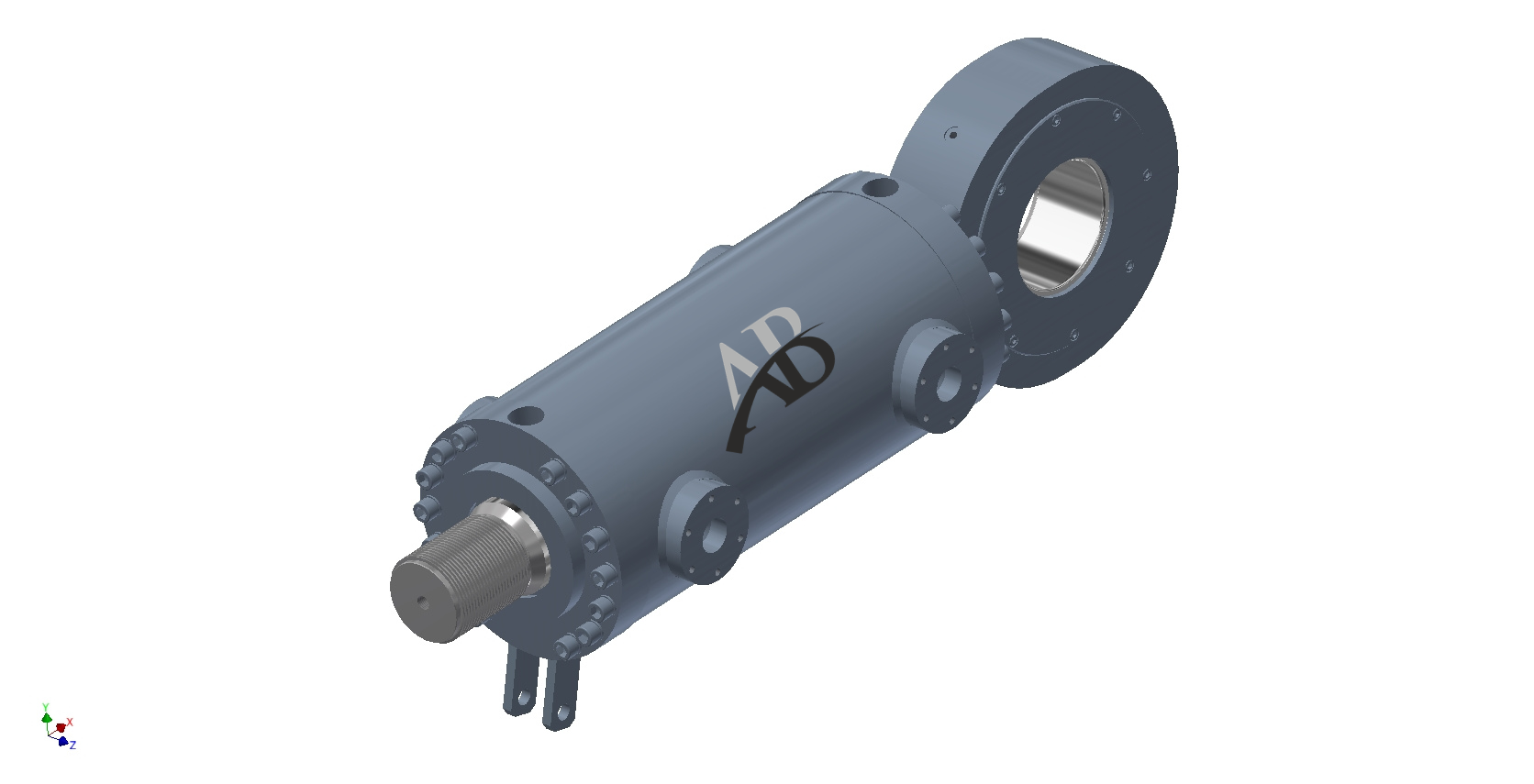

Coal Mill Cylinder
Application-engineered for demanding process-plant duty.
Coal mill cylinders maintain optimal roller pressure on vertical coal pulverizers, ensuring fine, uniform pulverized fuel for kiln burners and boiler furnaces.
6 engineering parametersAlternate Views:
Application detail
Designed around plant conditions.
Fitted with certified fire-retardant fluid seals, nitrogen accumulator dampening, and rugged scrapers to resist fine, highly combustible coal dust ingress.
Final bore, stroke, mounting, material and seal selection are confirmed against the approved drawing and operating duty.
Technical range
6 parametersCoal Mill Cylinder specifications
| Parameter | Indicative specification |
|---|---|
| Bore Size | 150-500 mm |
| Rod Diameter | 100-350 mm |
| Stroke Length | Up to 1,200 mm |
| Working Pressure | 200-350 bar |
| Seals | Fire-retardant hydraulic-fluid-compatible seals |
| Mounting | Trunnion mount |
