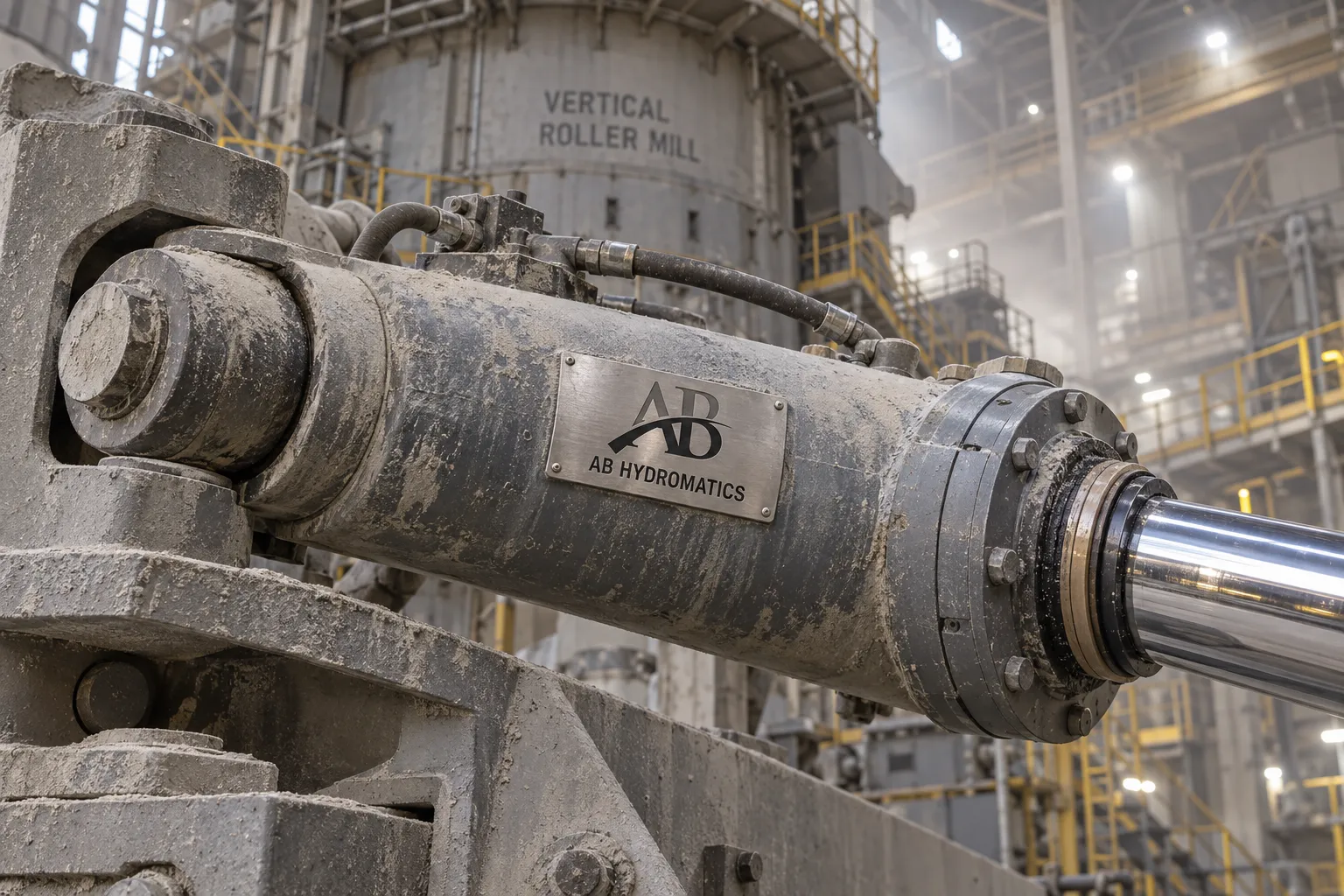

MVR Cylinder
- Bore Size
- 200-630 mm
- Rod Diameter
- 140-450 mm
- Stroke Length
- Up to 1,500 mm
Process plant hydraulics
Cement & Steel Plant Cylinders
Heavy-duty hydraulic cylinders engineered for continuous operation across cement, steel, power and mineral-processing plants.
Plant-wise range
Select the cylinder application.
Review indicative operating ranges, then share the plant reference, duty cycle and drawing details for final engineering.

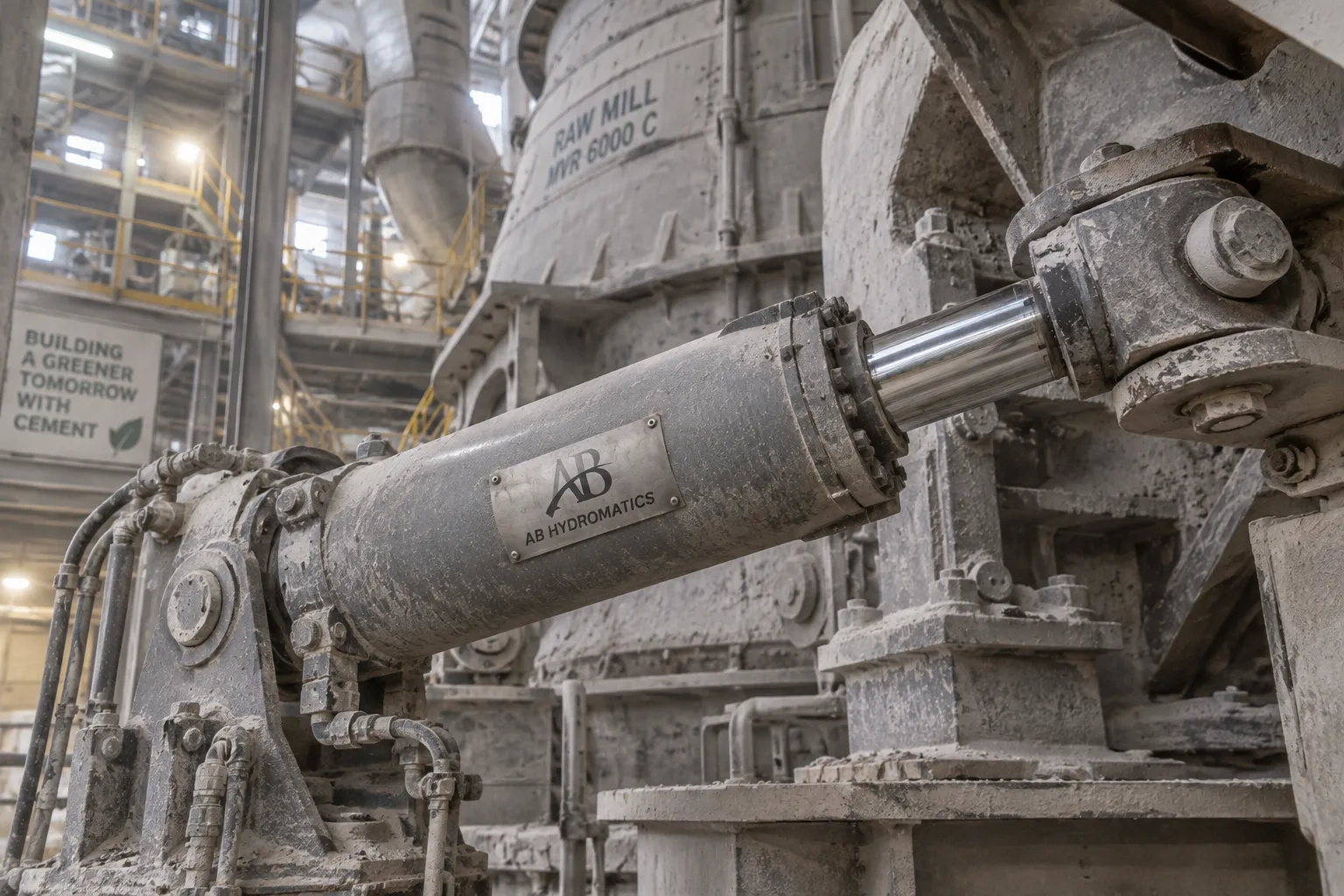

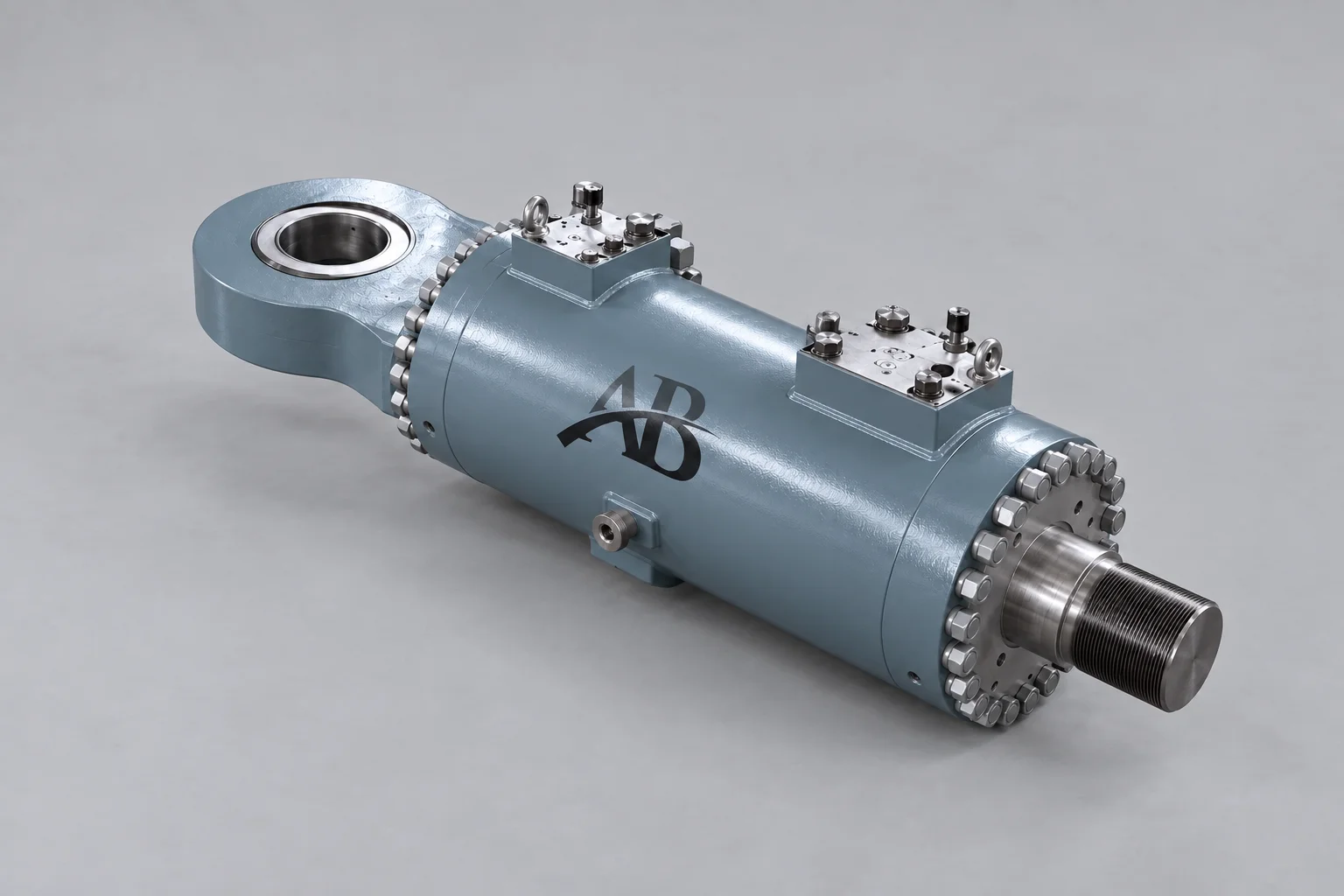

Raw Mill Cylinder
- Bore Size
- 150-630 mm
- Rod Diameter
- 100-400 mm
- Stroke Length
- Up to 1,500 mm

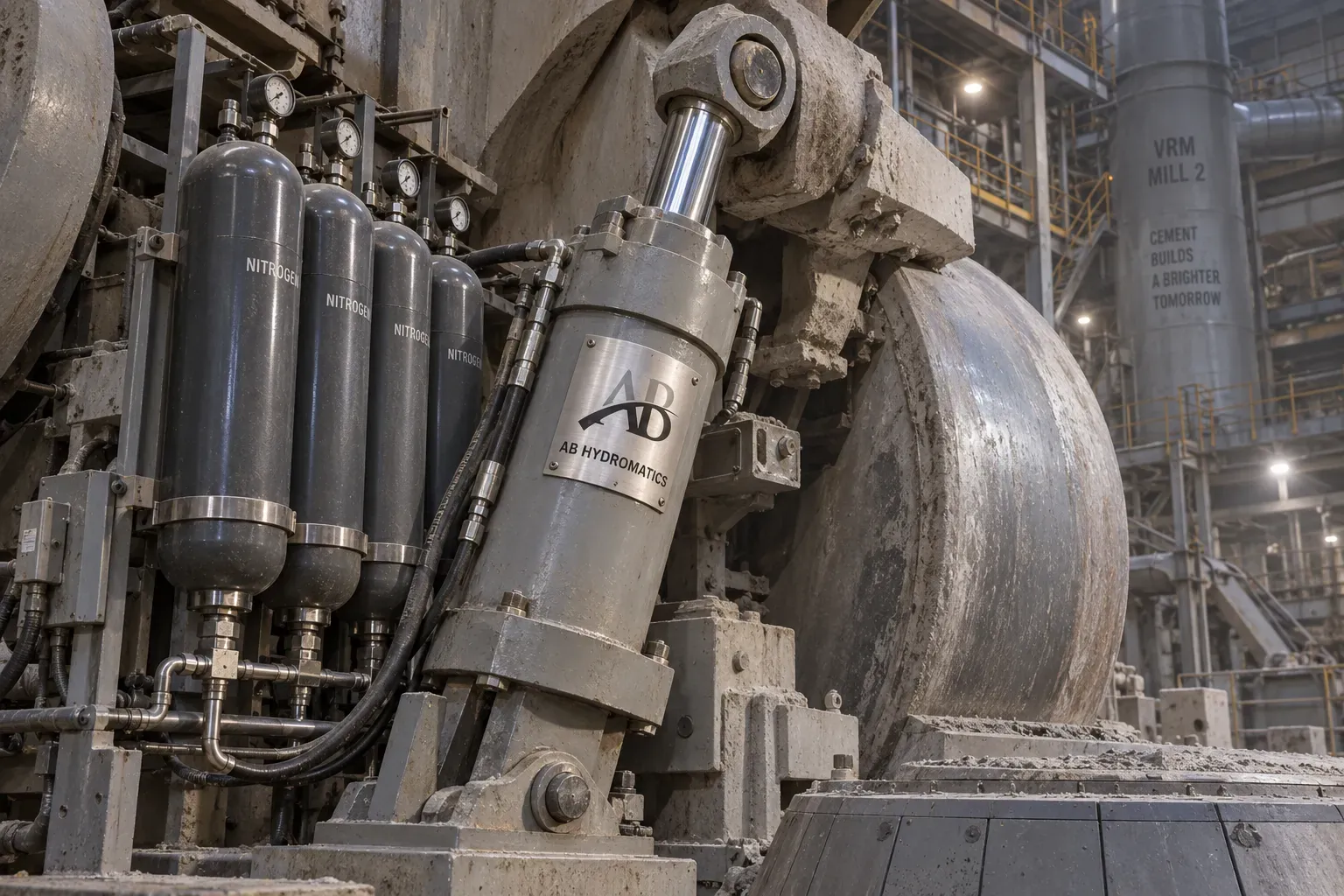

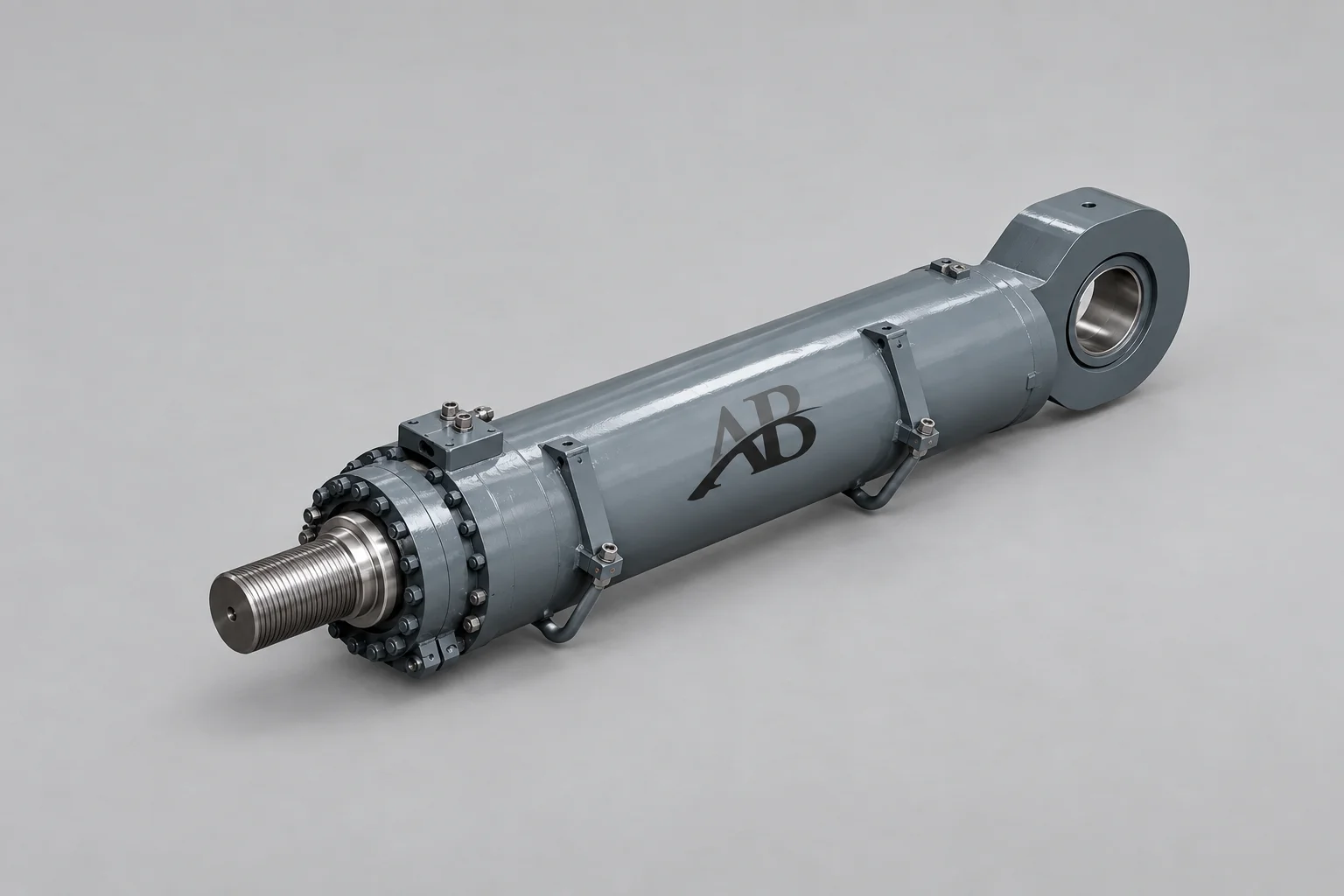

VRM Cylinder
- Bore Size
- 180-600 mm
- Rod Diameter
- 120-400 mm
- Stroke Length
- 800-1,600 mm

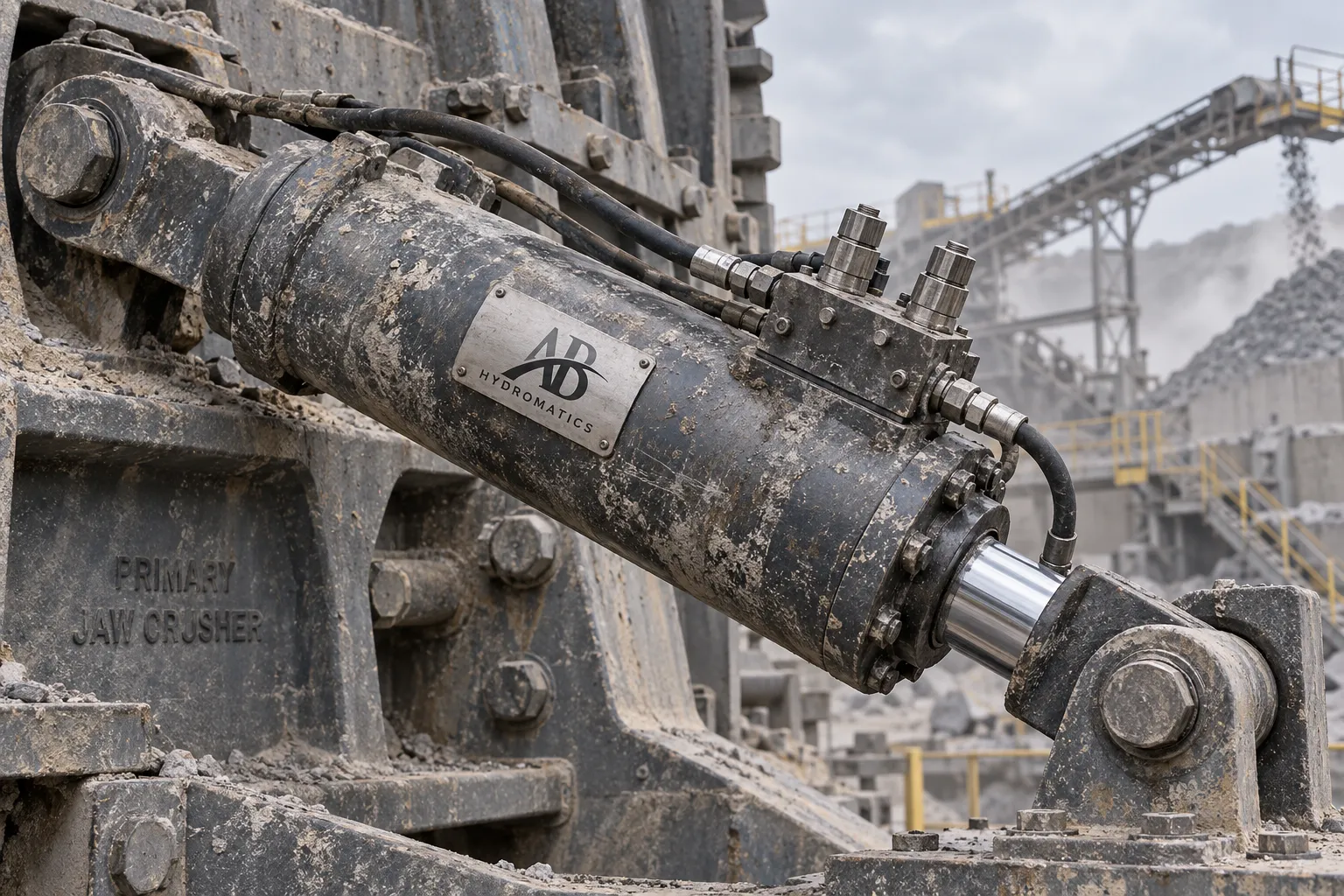

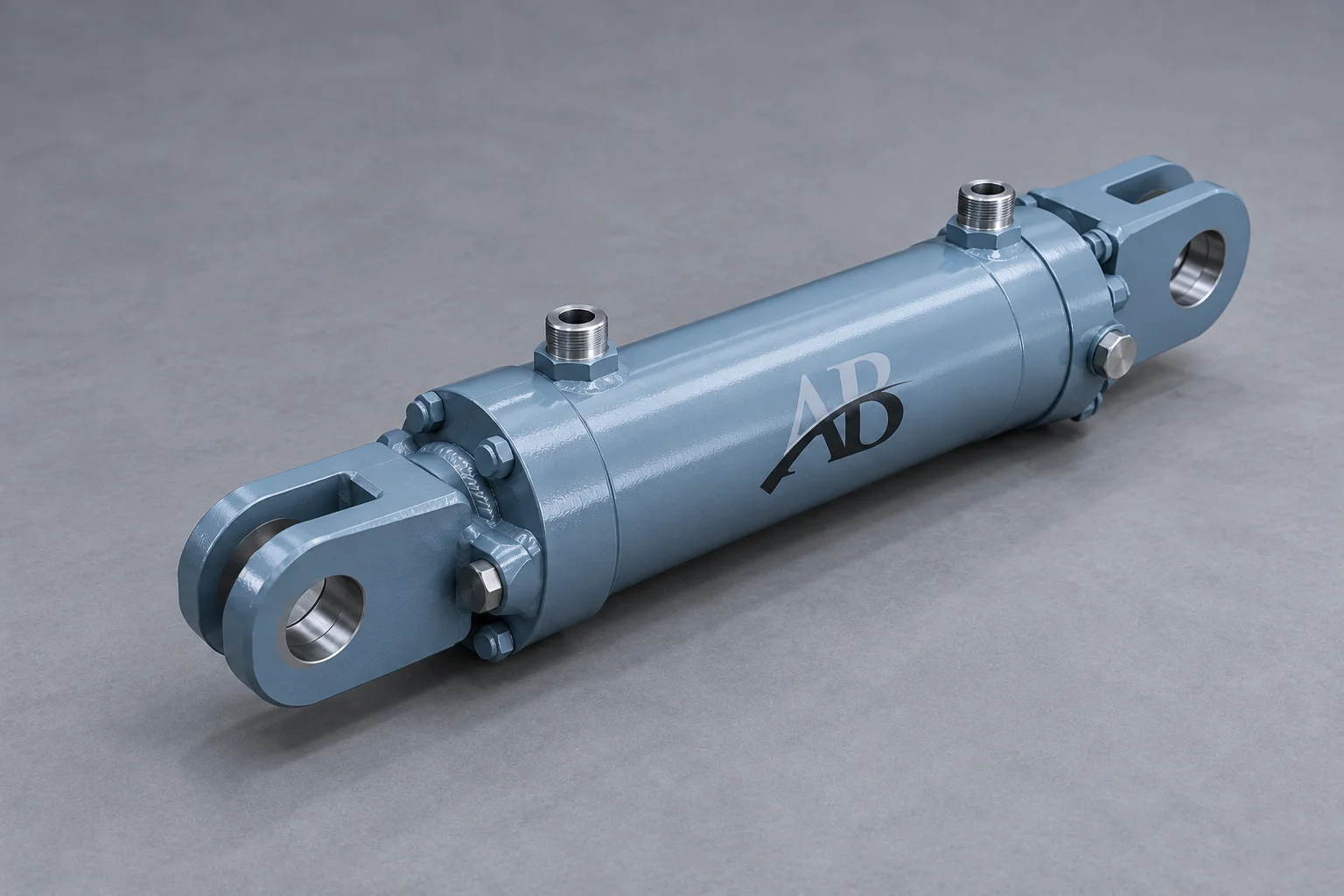

Crusher Cylinder
- Bore Size
- 125-500 mm
- Stroke Length
- 150-800 mm
- Working Pressure
- 250-400 bar

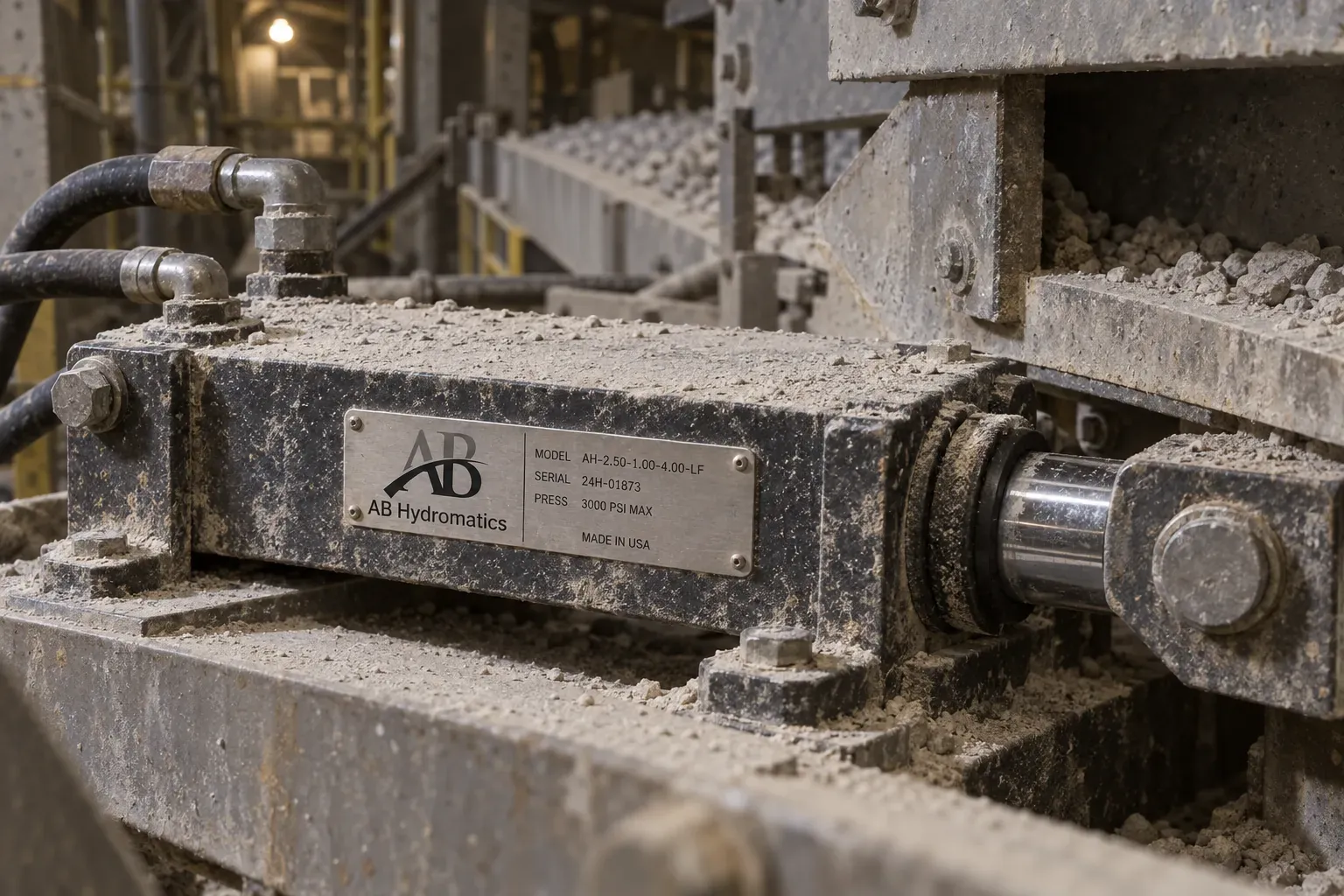

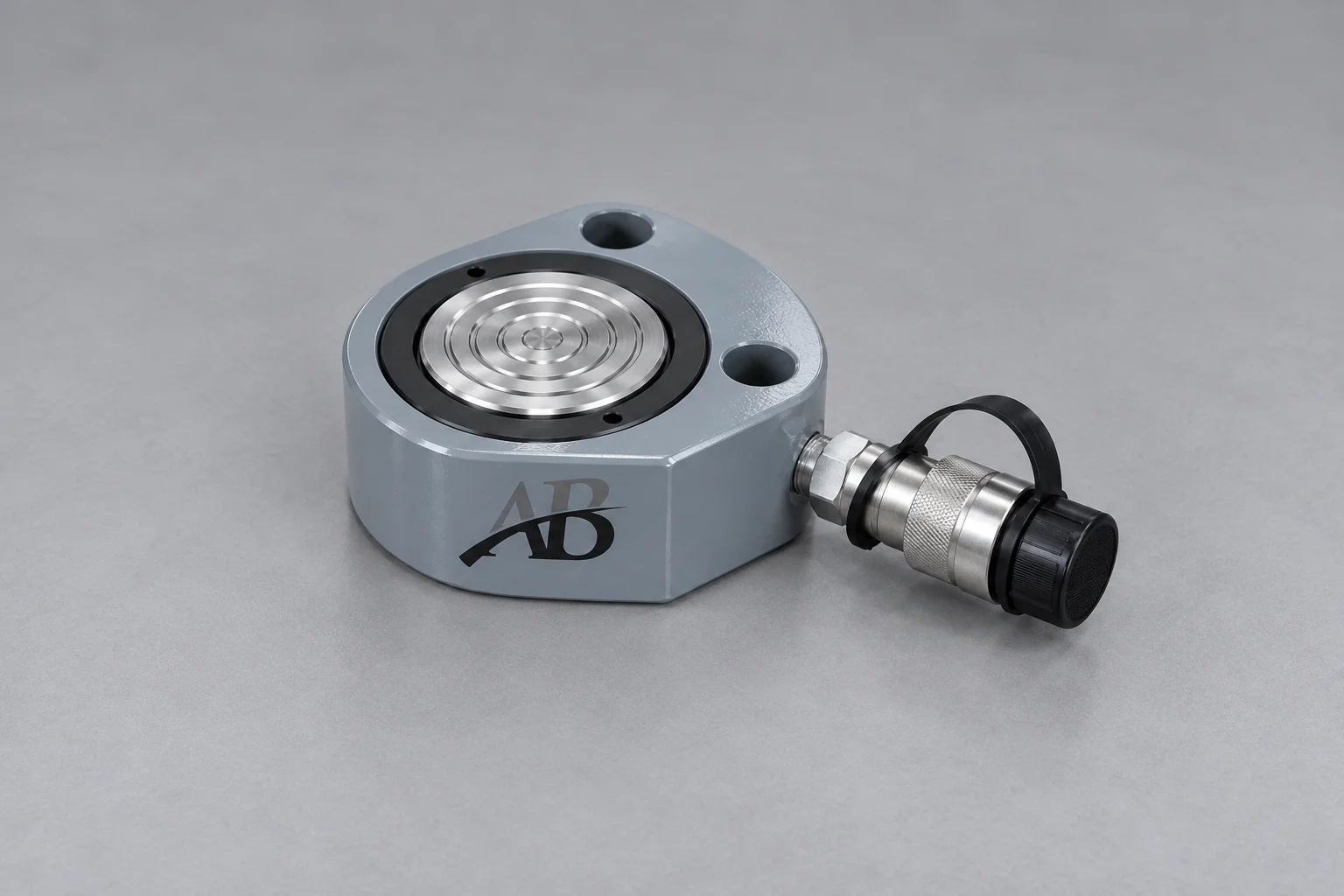

Flat Cylinder
- Bore Size
- 63-250 mm
- Stroke Length
- 50-800 mm
- Working Pressure
- 160-250 bar

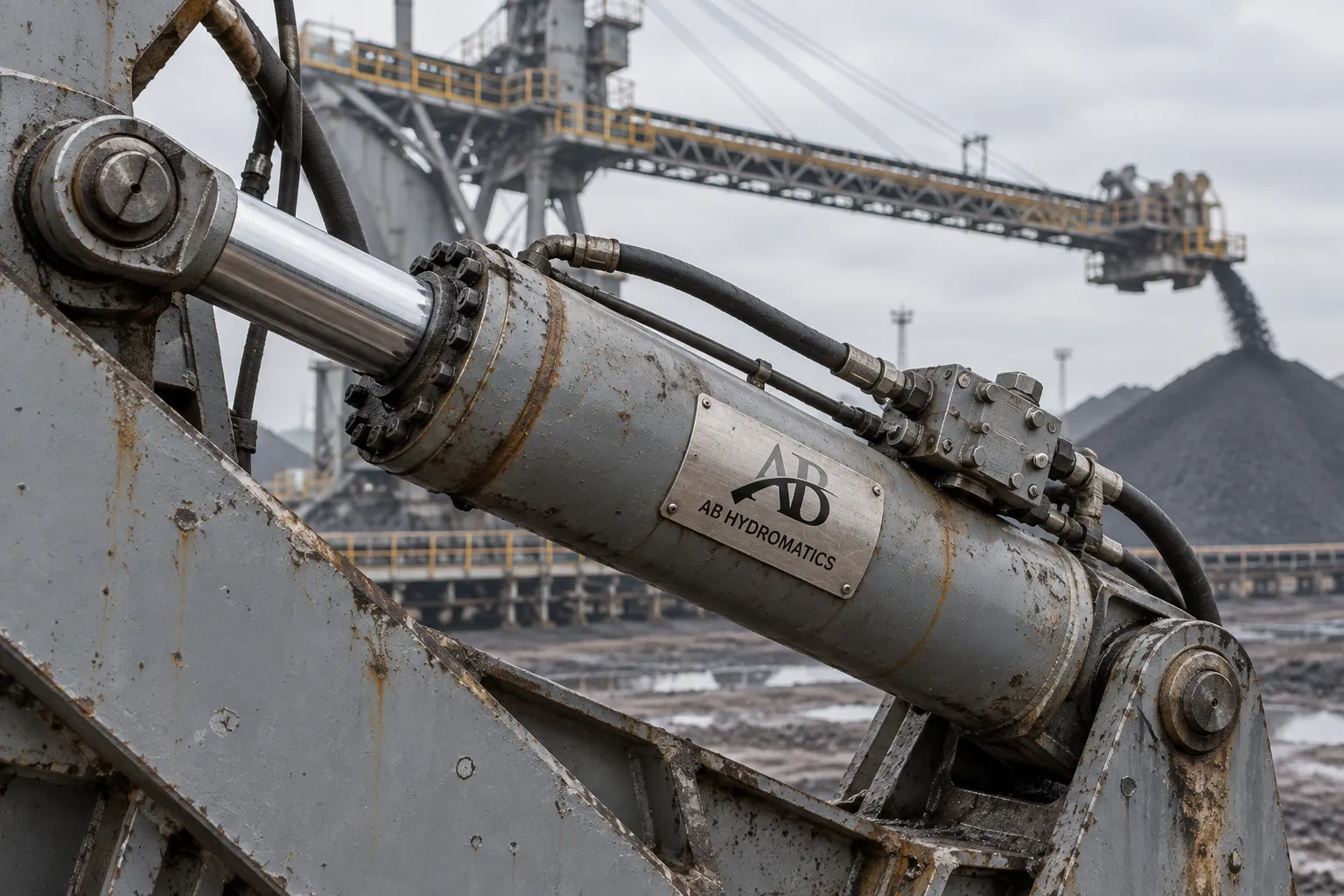

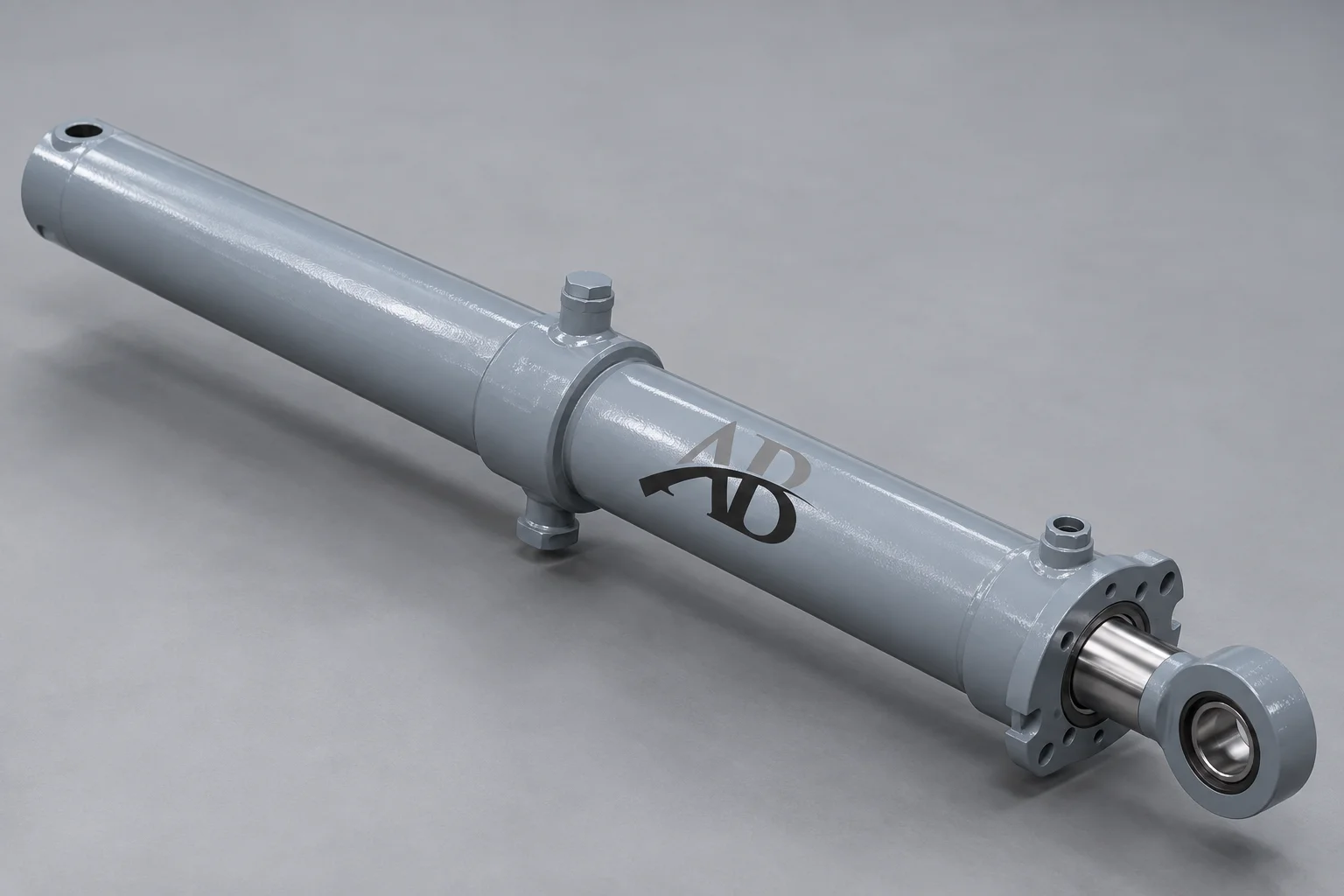

Stacker Cylinder
- Bore Size
- 100-400 mm
- Stroke Length
- Up to 3,000 mm
- Working Pressure
- 160-320 bar

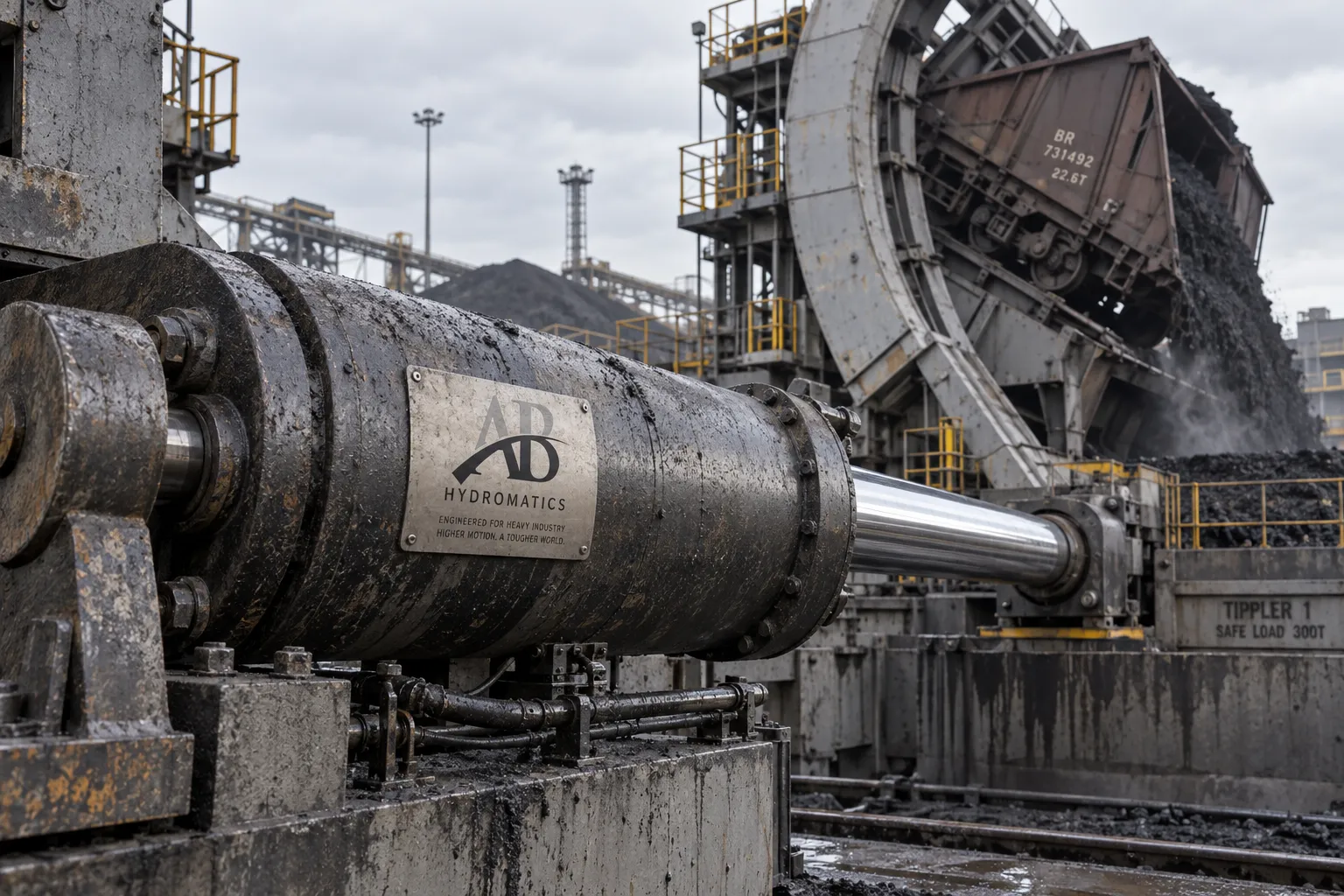

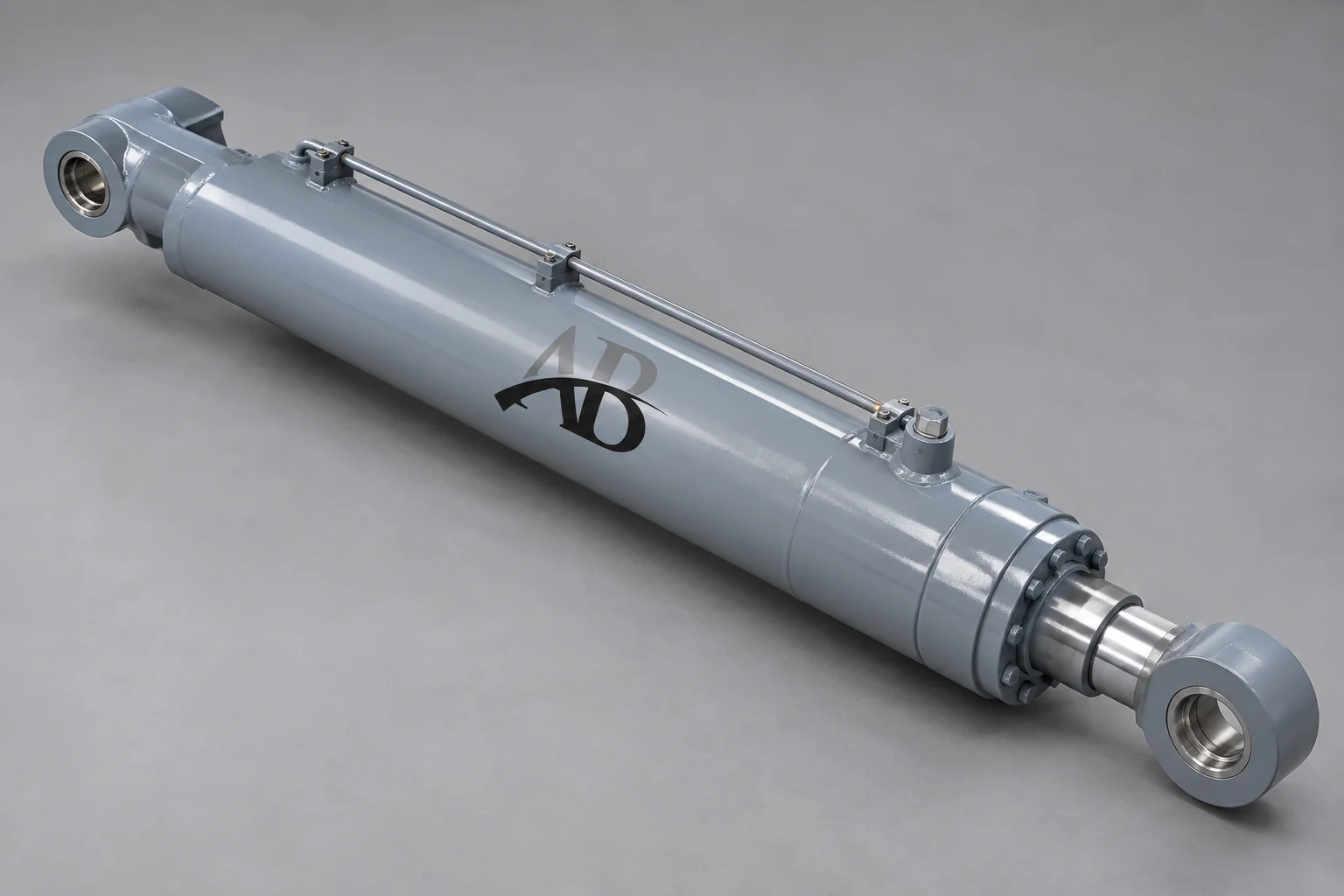

Wagon Tippler Cylinder
- Bore Size
- 200-550 mm
- Stroke Length
- 1,200-3,800 mm
- Working Pressure
- 210-350 bar

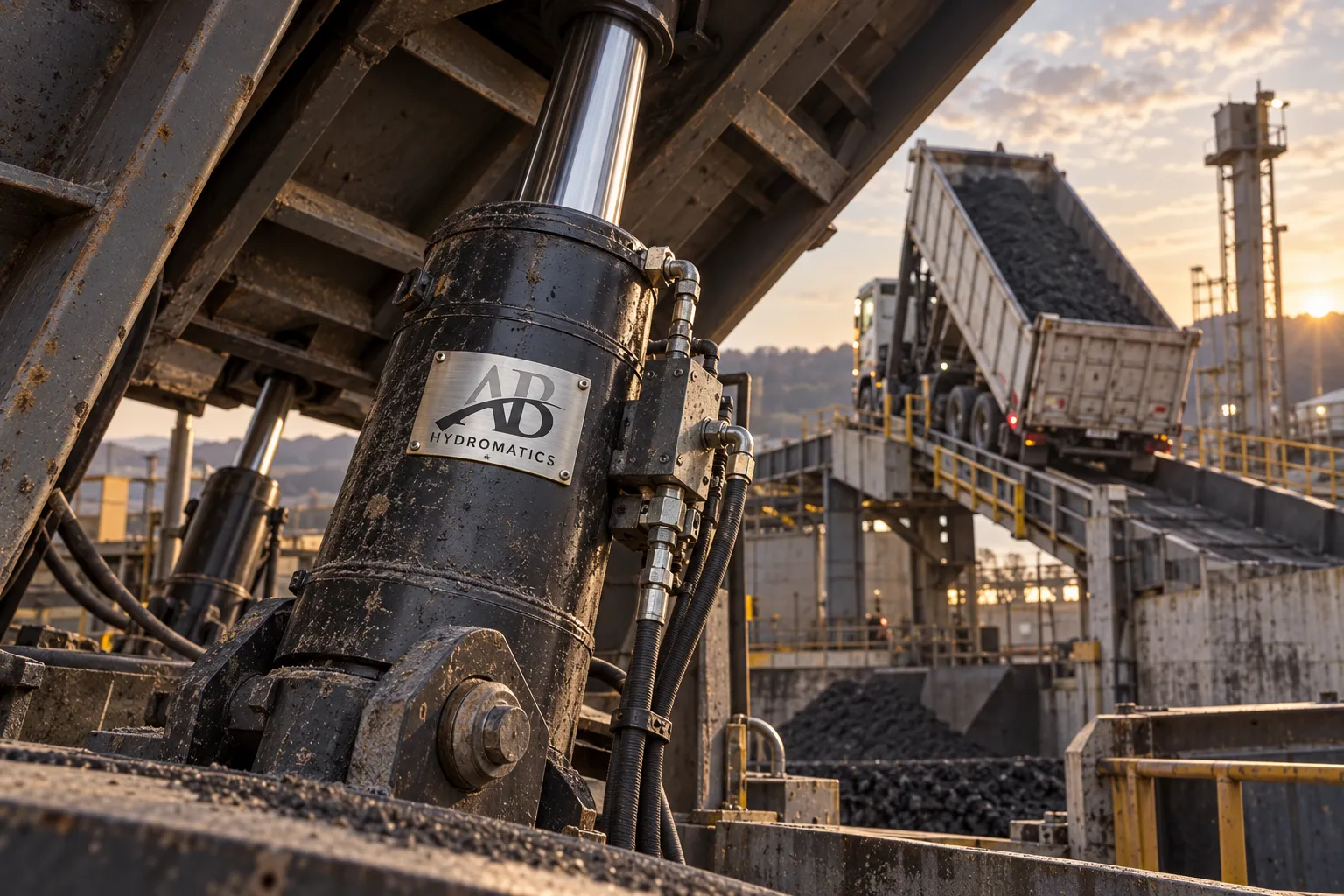

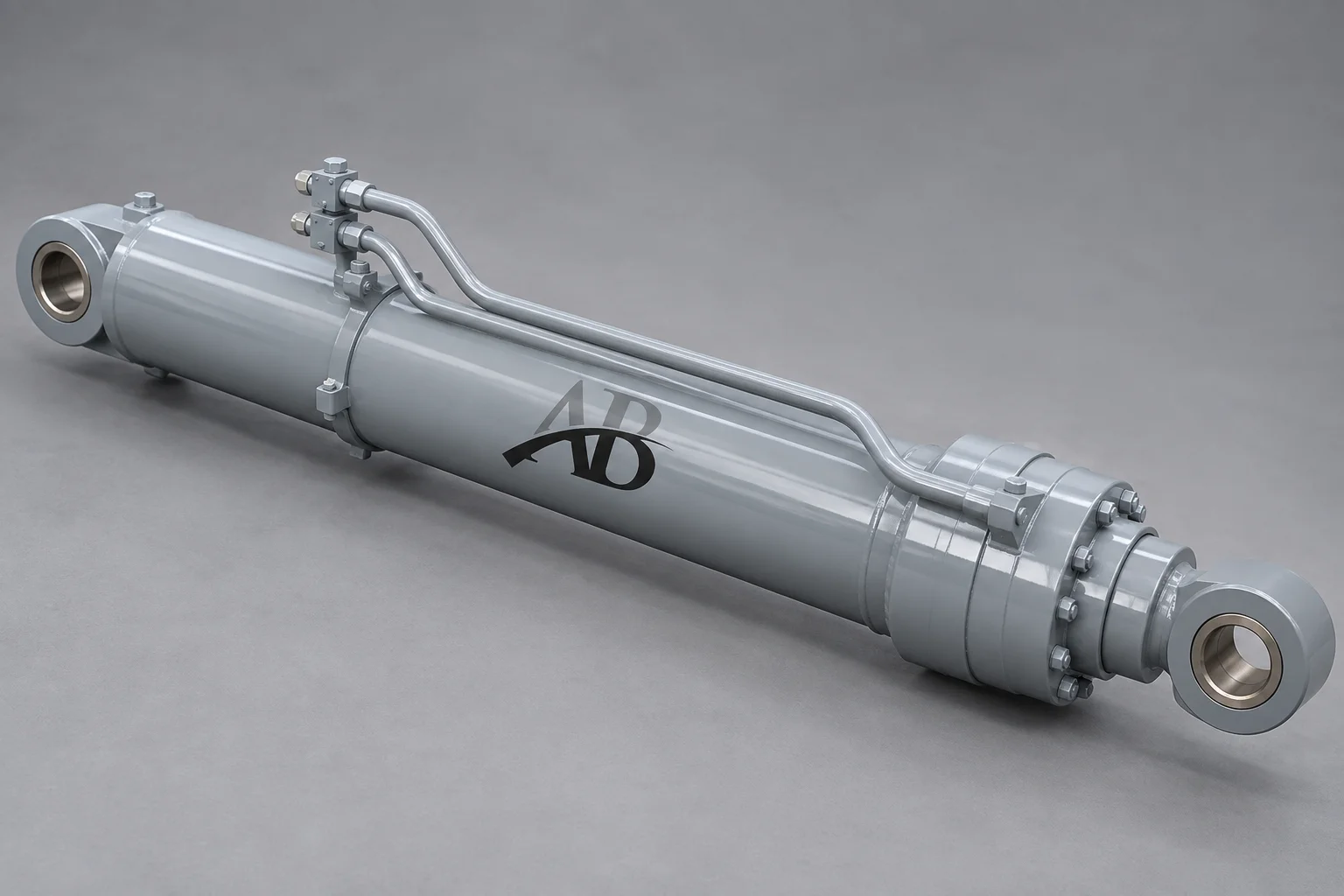

Truck Tippler Cylinder
- Bore Size
- 180-450 mm
- Stroke Length
- Up to 4,500 mm (multi-stage available)
- Working Pressure
- 180-320 bar

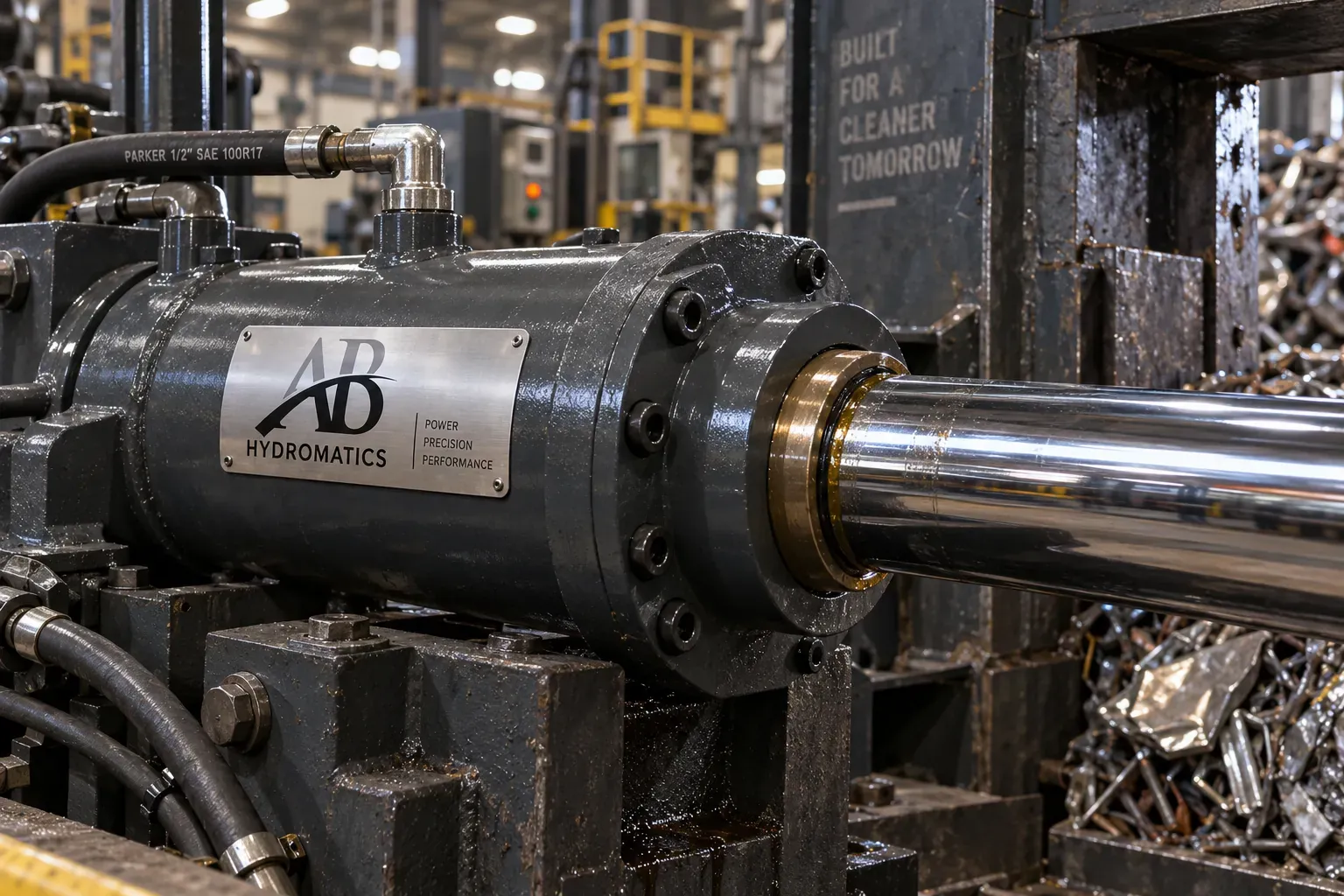

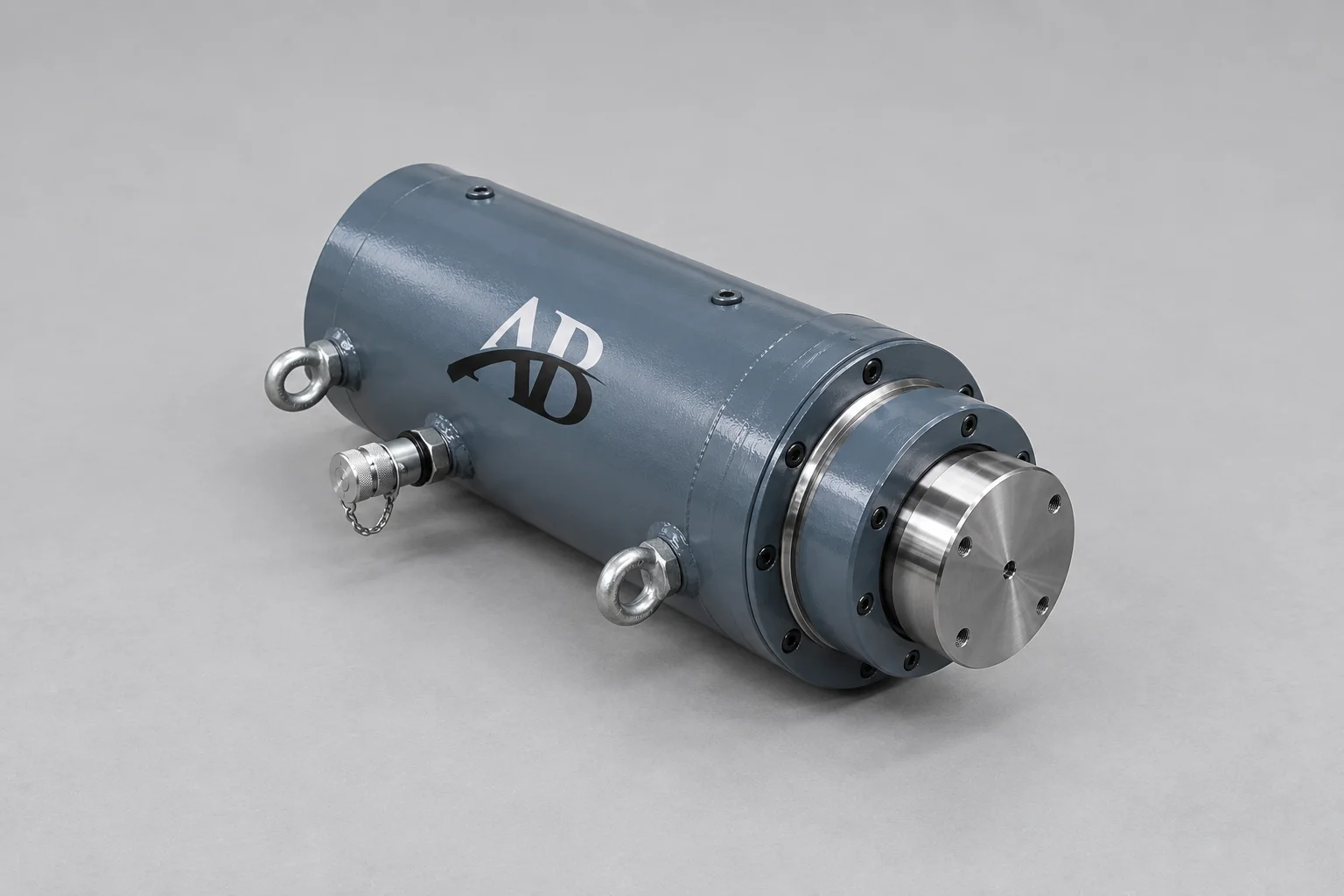

Plunger Cylinder
- Bore Size
- 100-500 mm
- Stroke Length
- Up to 2,000 mm
- Working Pressure
- Up to 350-700 bar

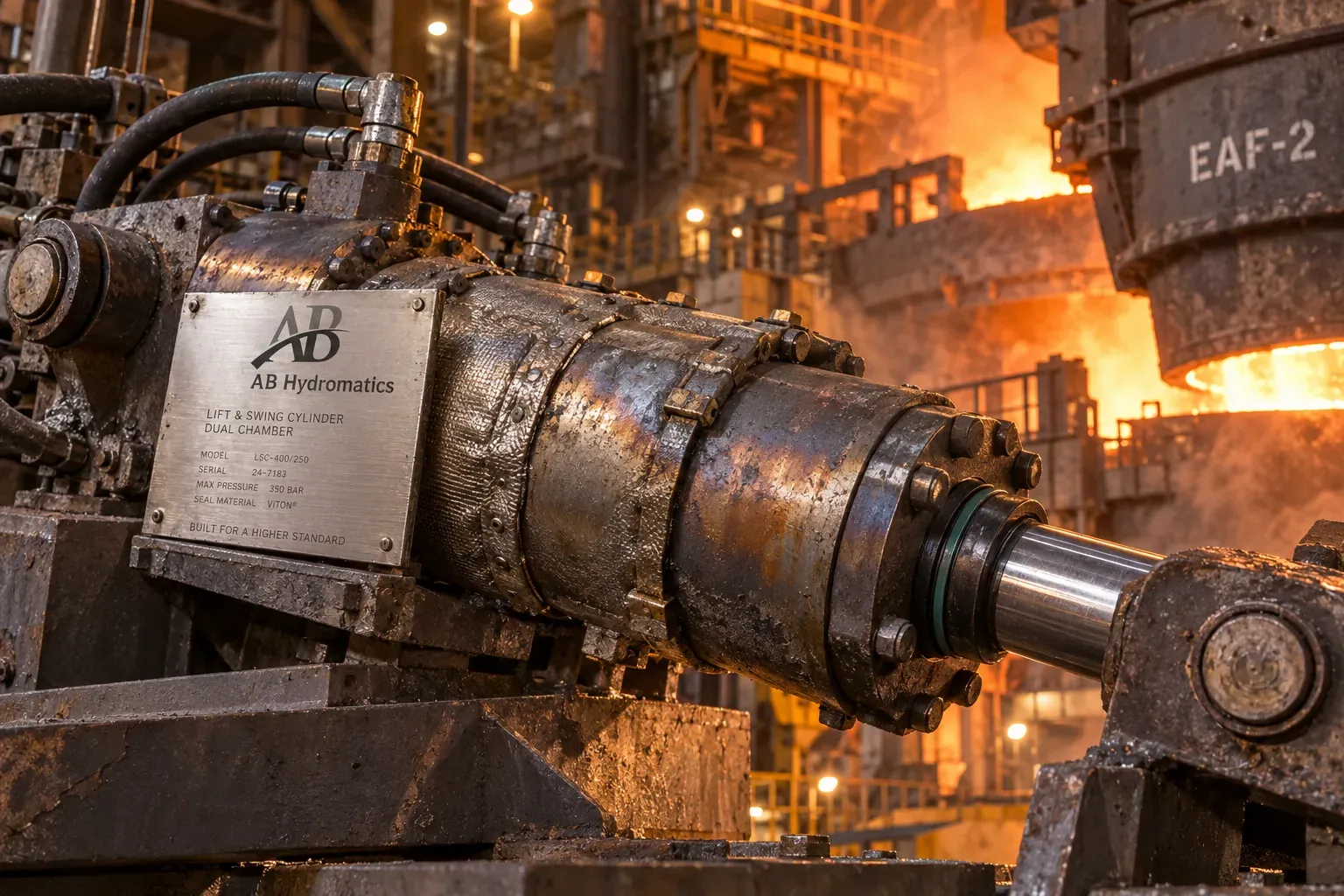

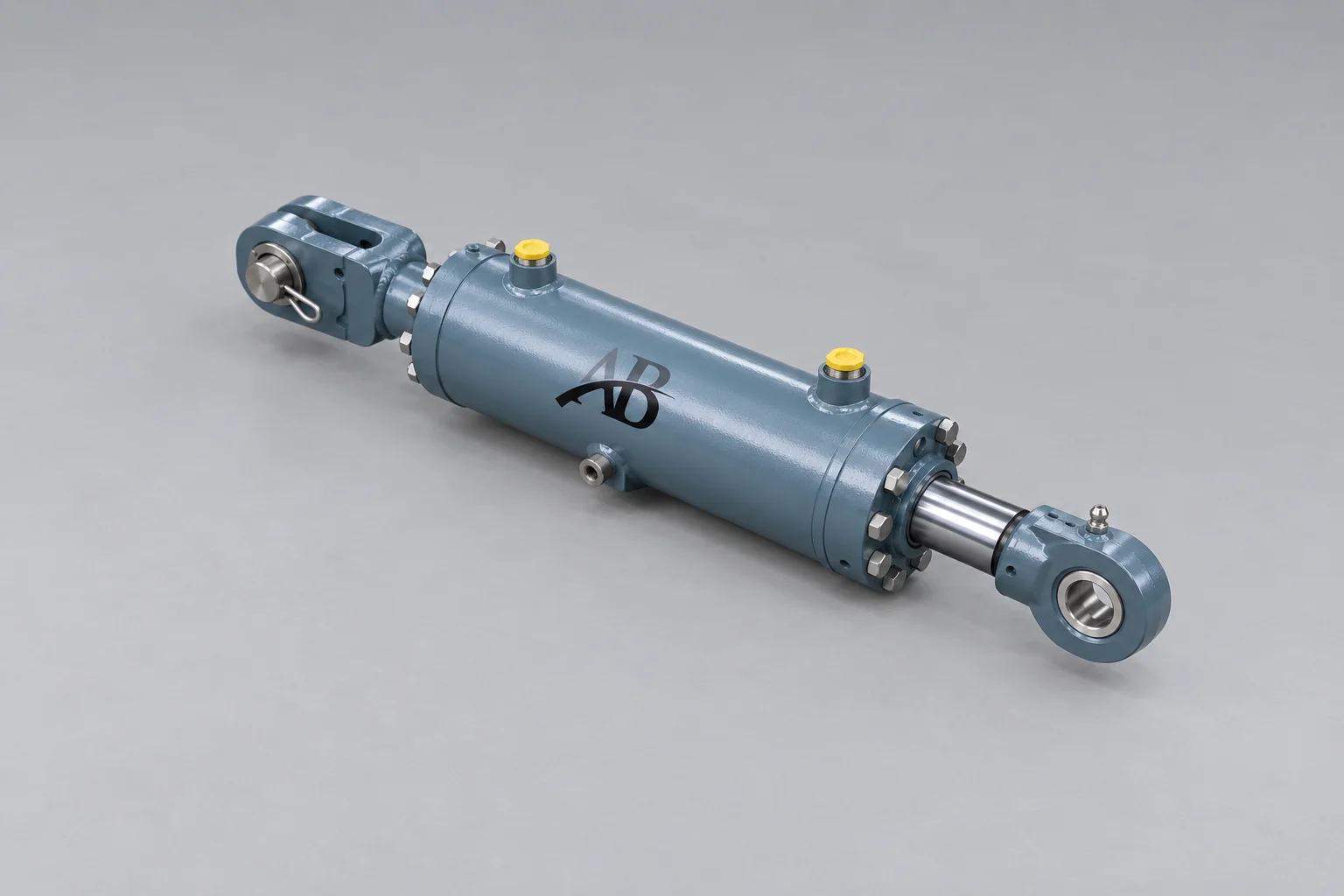

Lift and Swing Cylinder
- Bore Size
- 160-450 mm
- Lift Stroke
- 300-1,200 mm
- Swing Angle
- 90° - 180° bidirectional

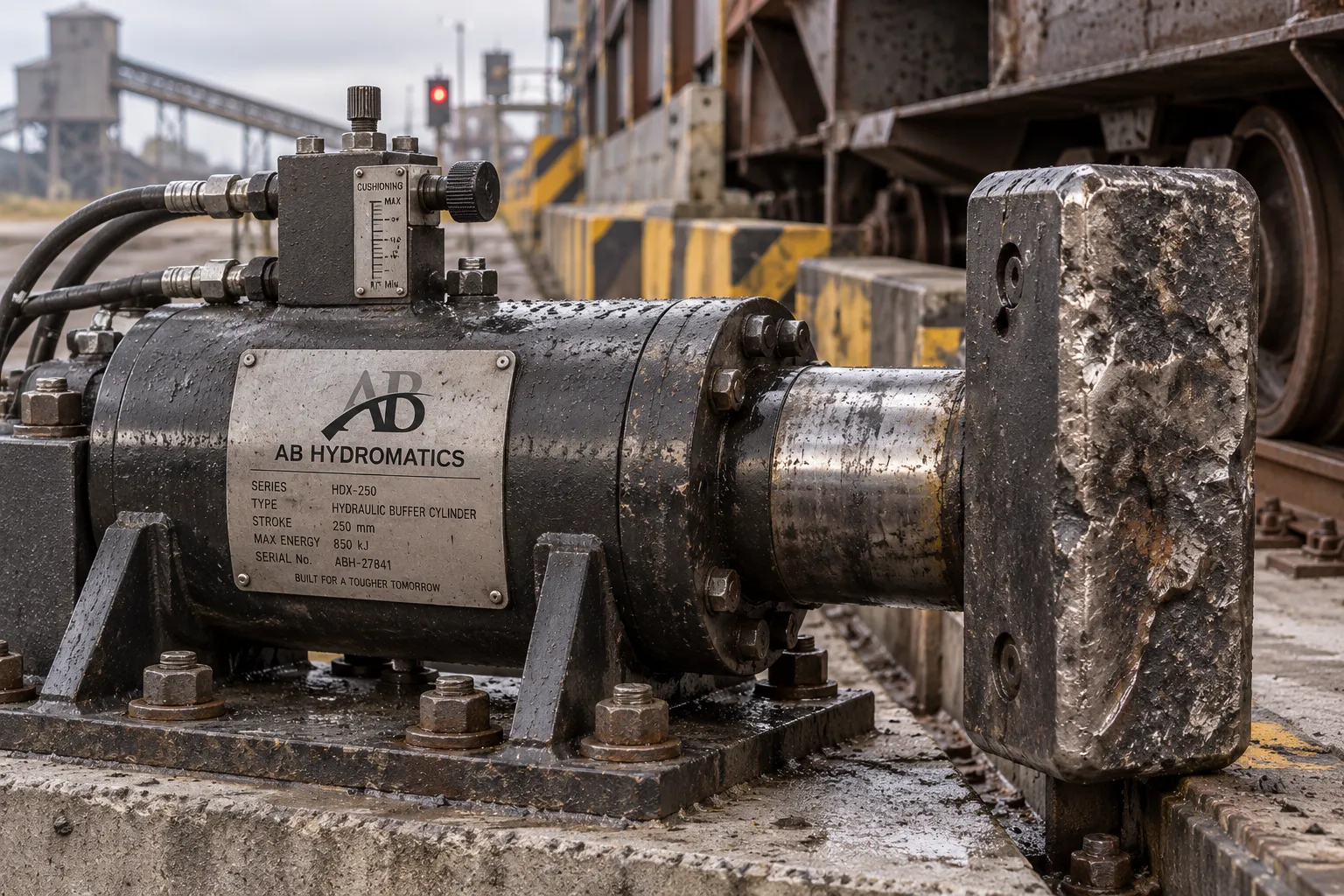

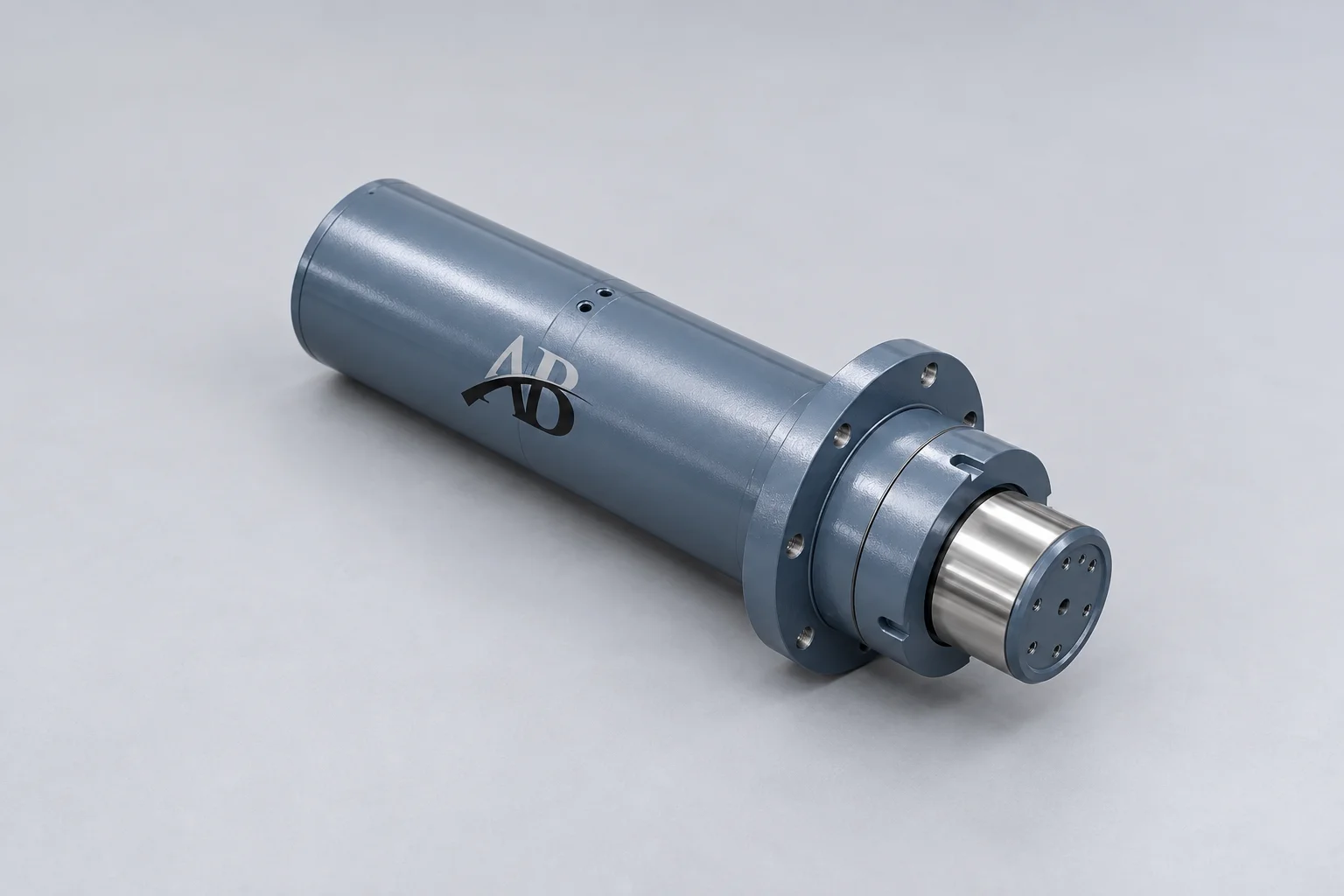

Buffer Cylinder
- Bore Size
- 100-300 mm
- Stroke Length
- 100-500 mm
- Working Pressure
- Up to 250 bar

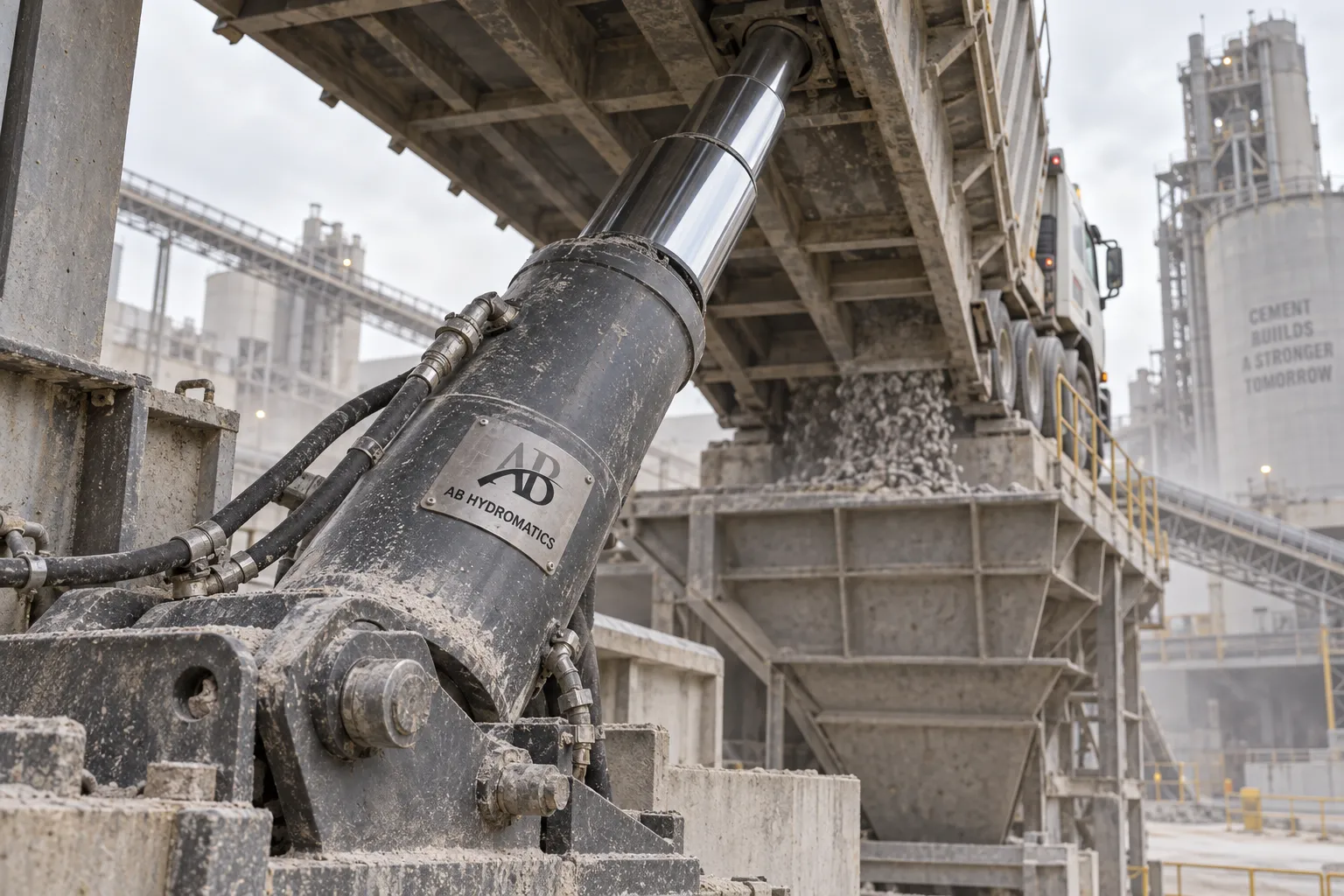

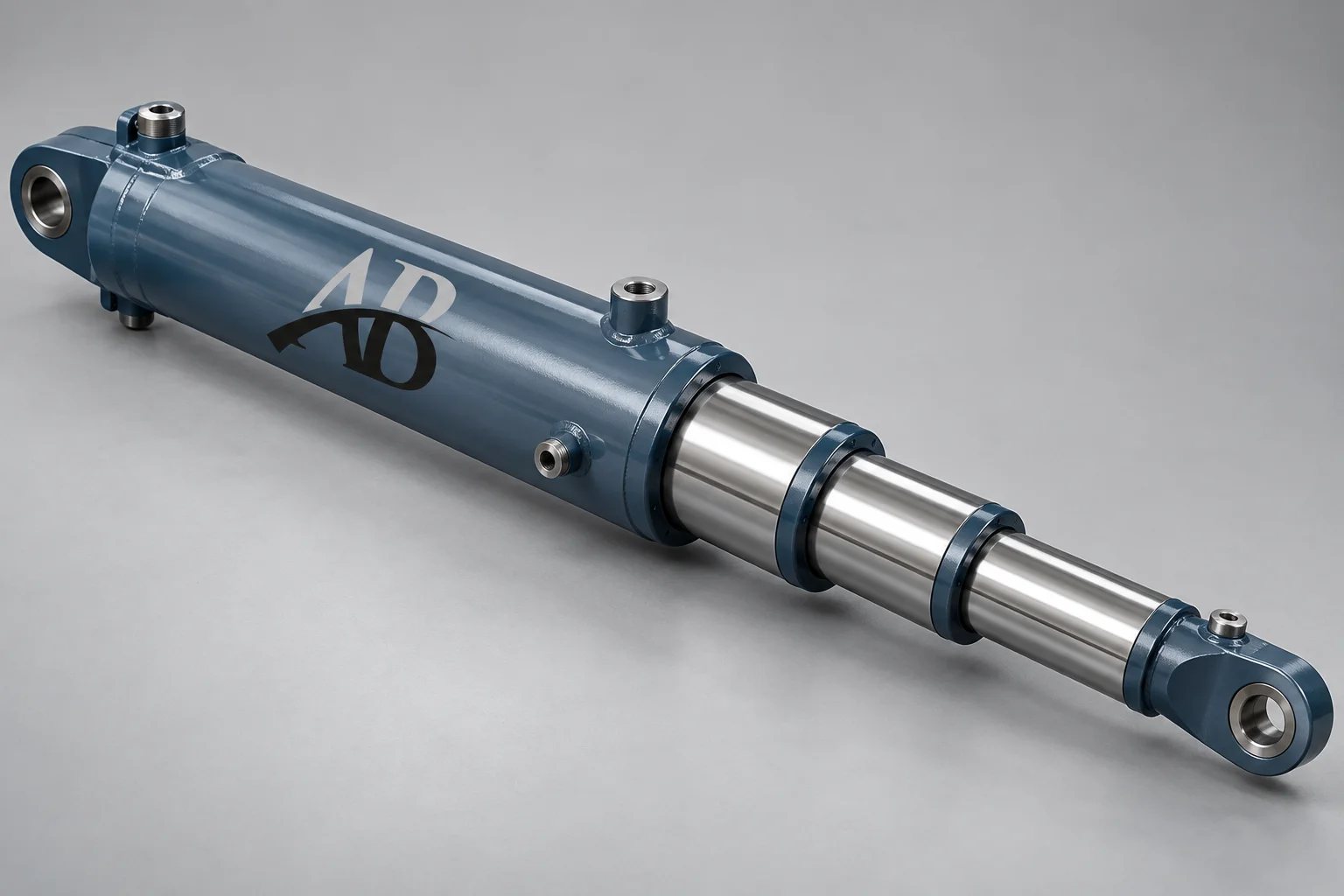

Truck Unloader Cylinder
- Bore Size
- 200-500 mm
- Stroke Length
- Up to 3,500 mm
- Working Pressure
- 200-350 bar

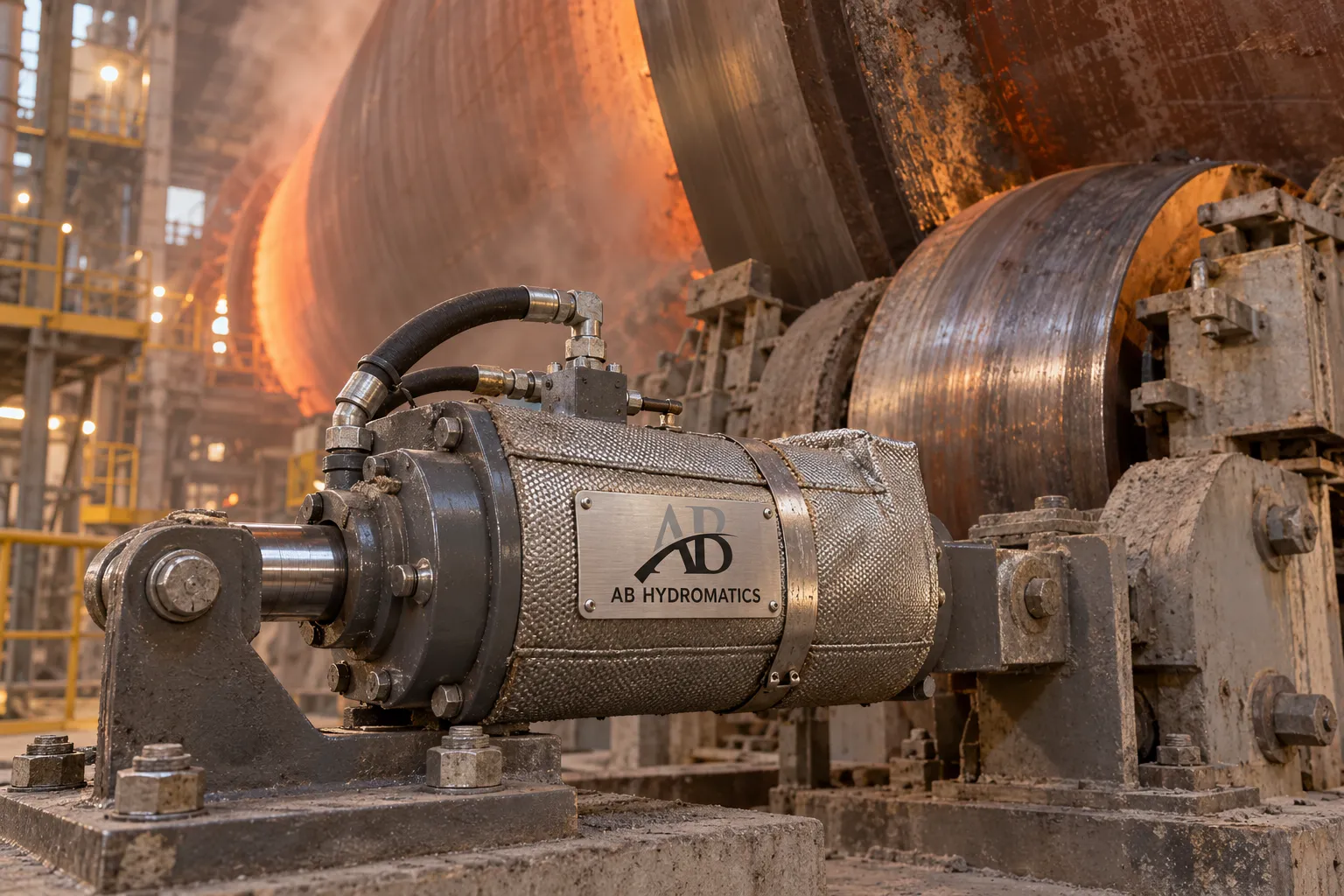

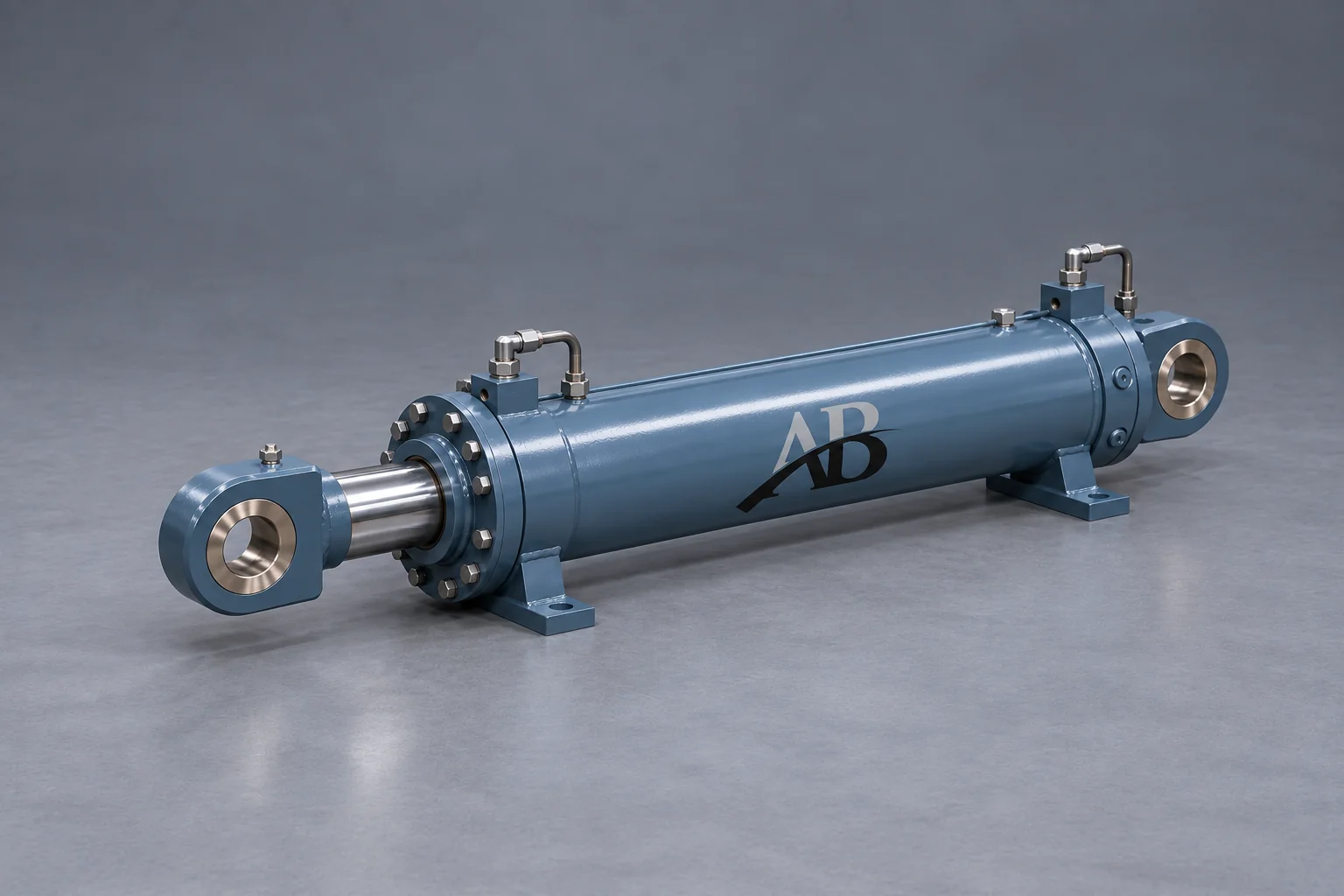

Kiln Thrust Cylinder
- Bore Size
- 125-350 mm
- Stroke Length
- 50-250 mm micro-control
- Working Pressure
- 160-250 bar

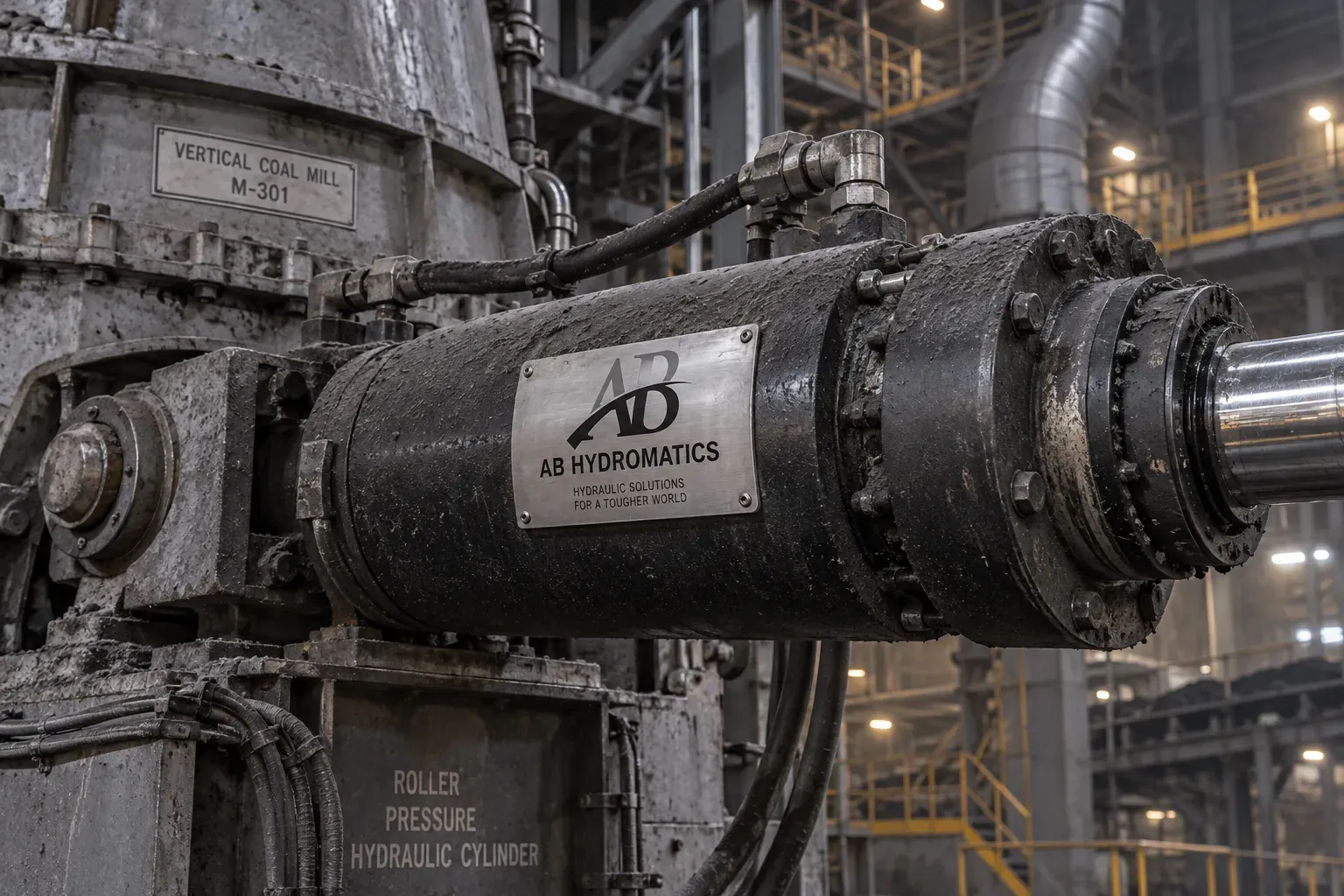

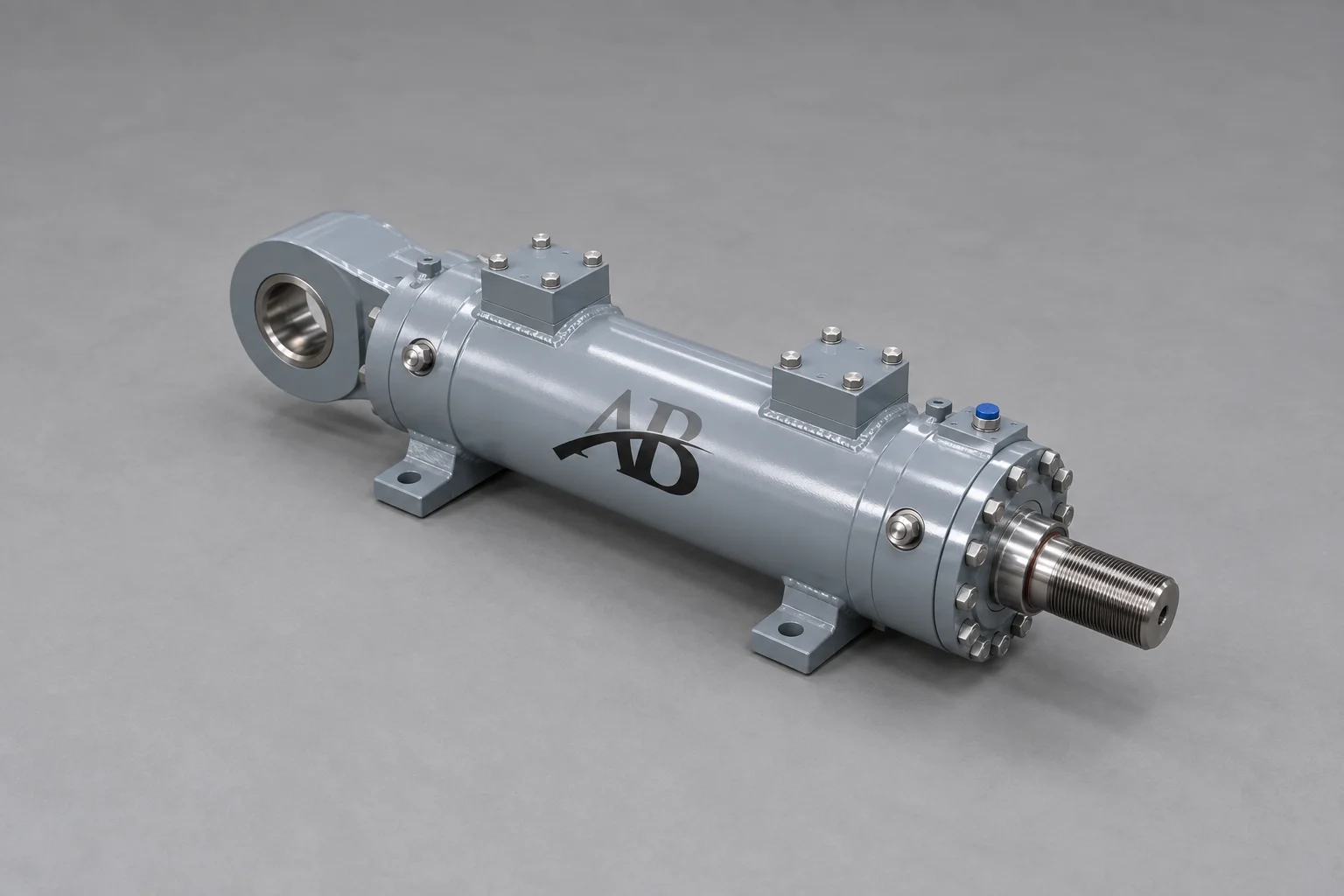

Coal Mill Cylinder
- Bore Size
- 150-500 mm
- Rod Diameter
- 100-350 mm
- Stroke Length
- Up to 1,200 mm

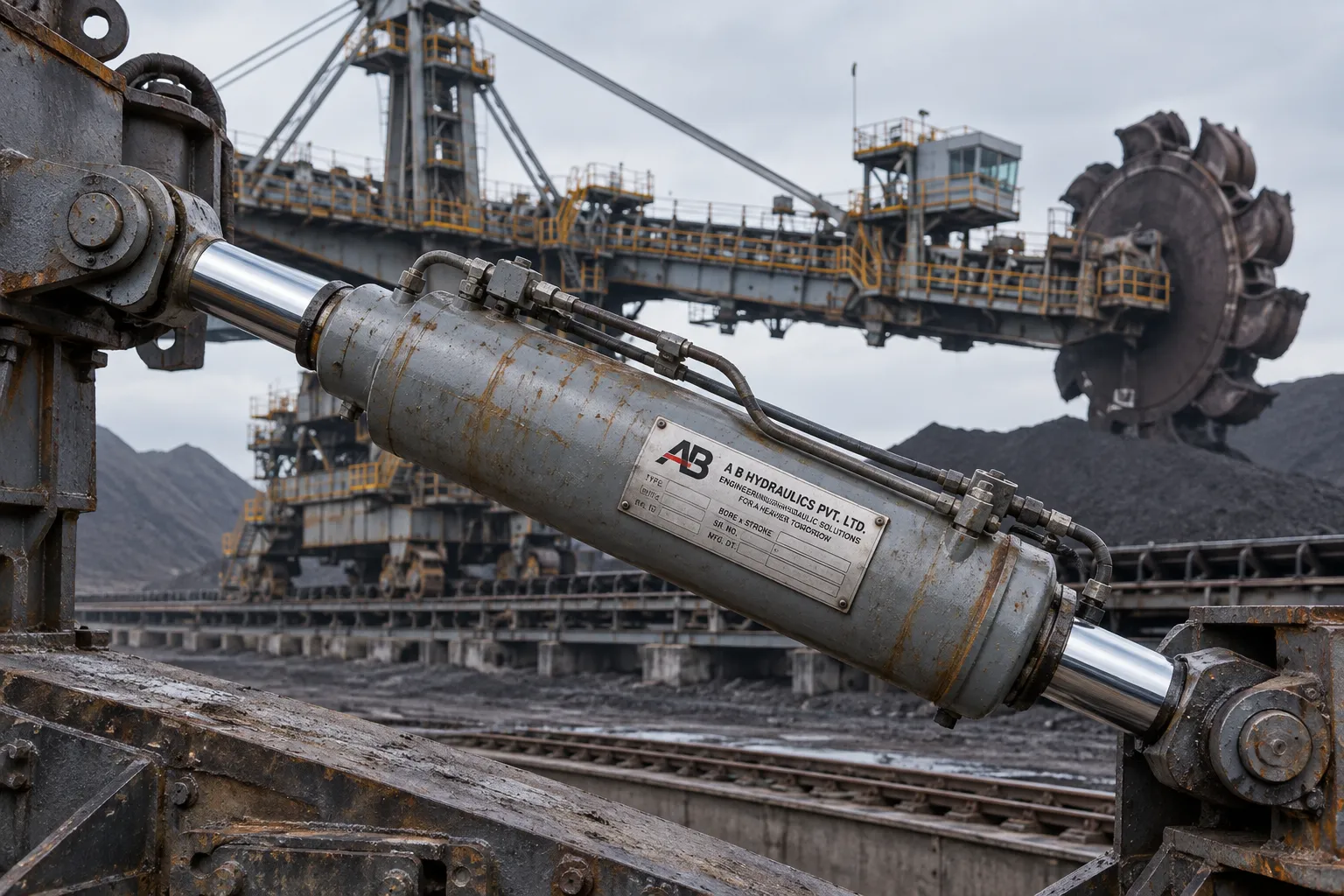

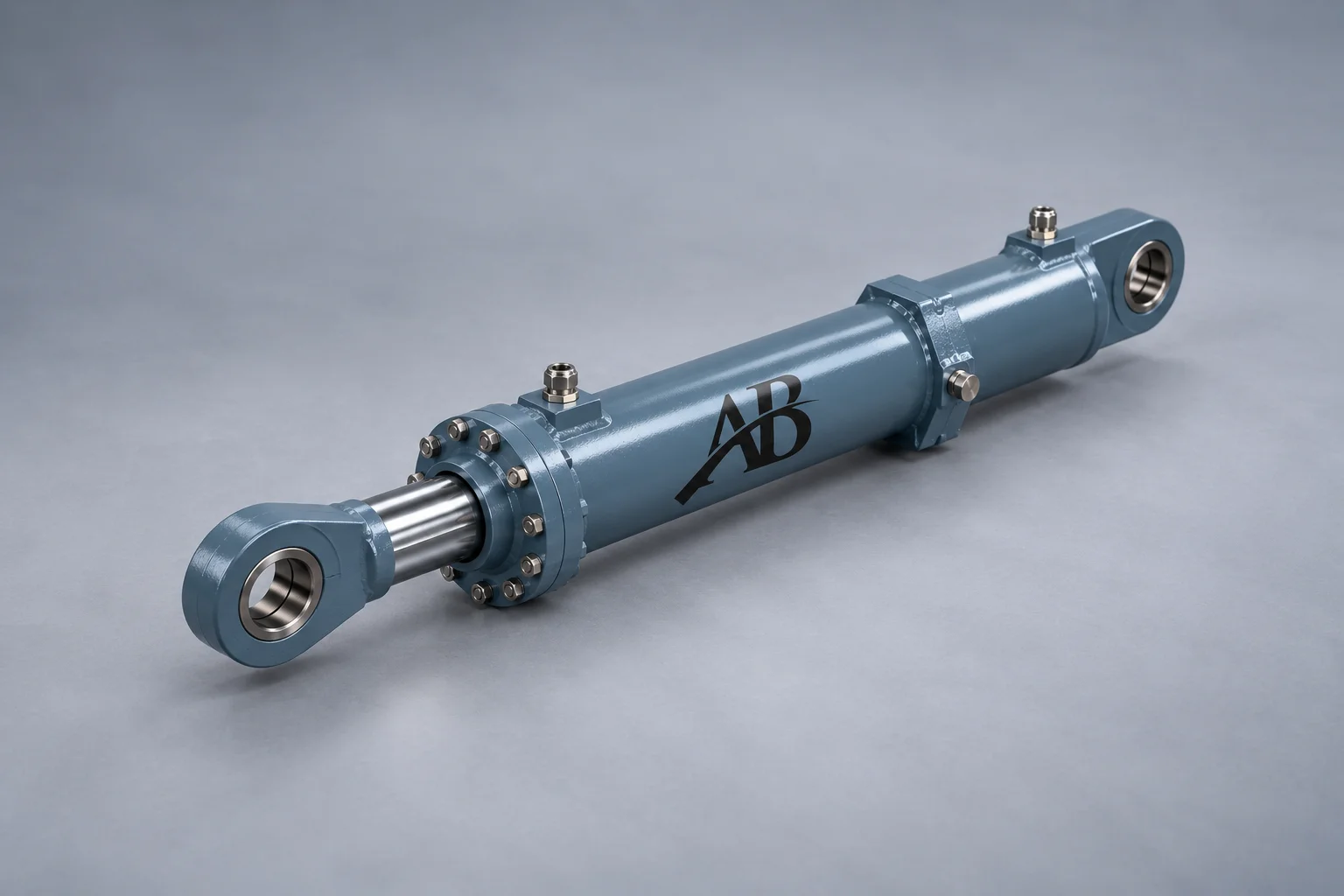

Reclaimer Cylinder
- Bore Size
- 125-450 mm
- Stroke Length
- 1,000-3,500 mm
- Working Pressure
- 180-320 bar

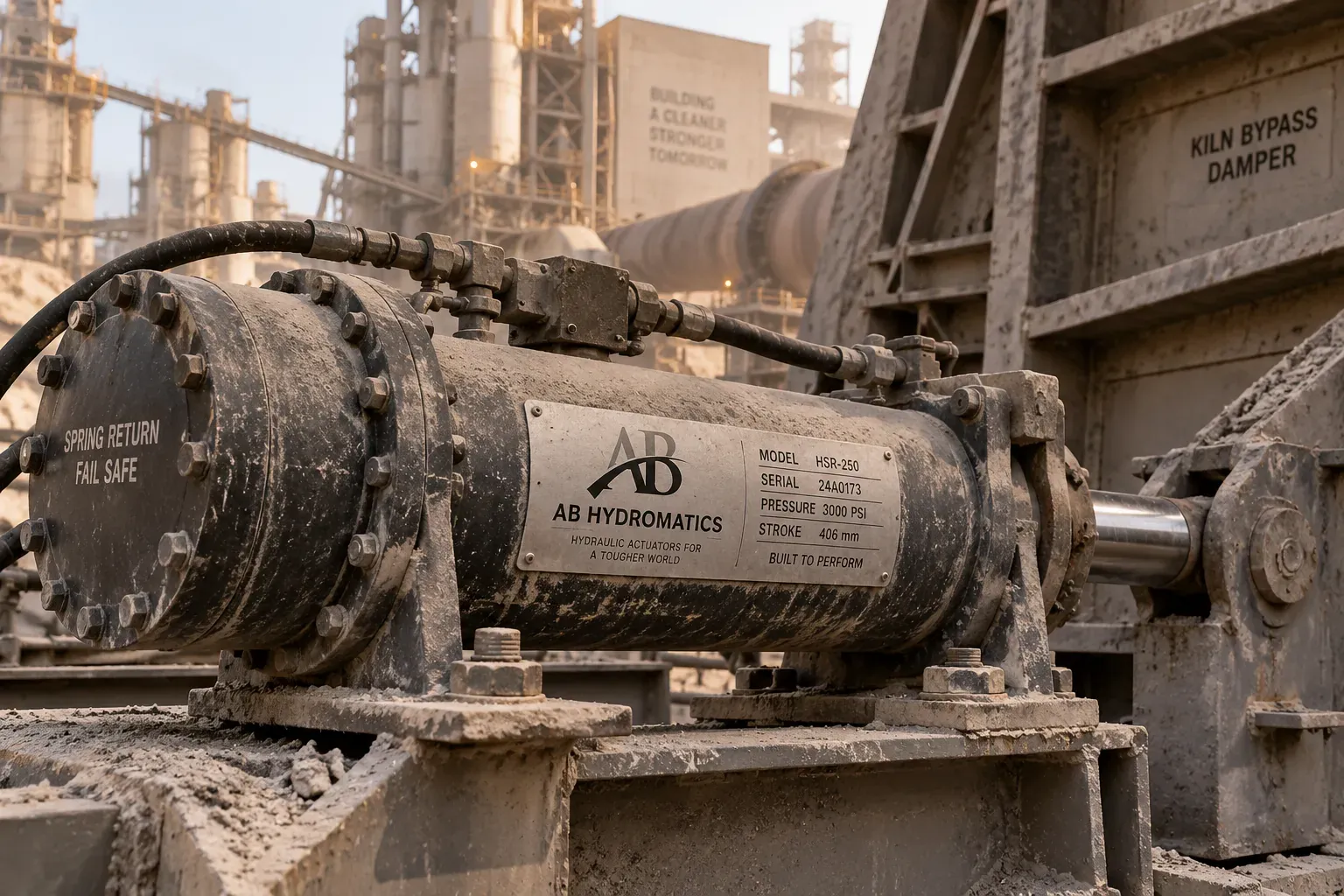

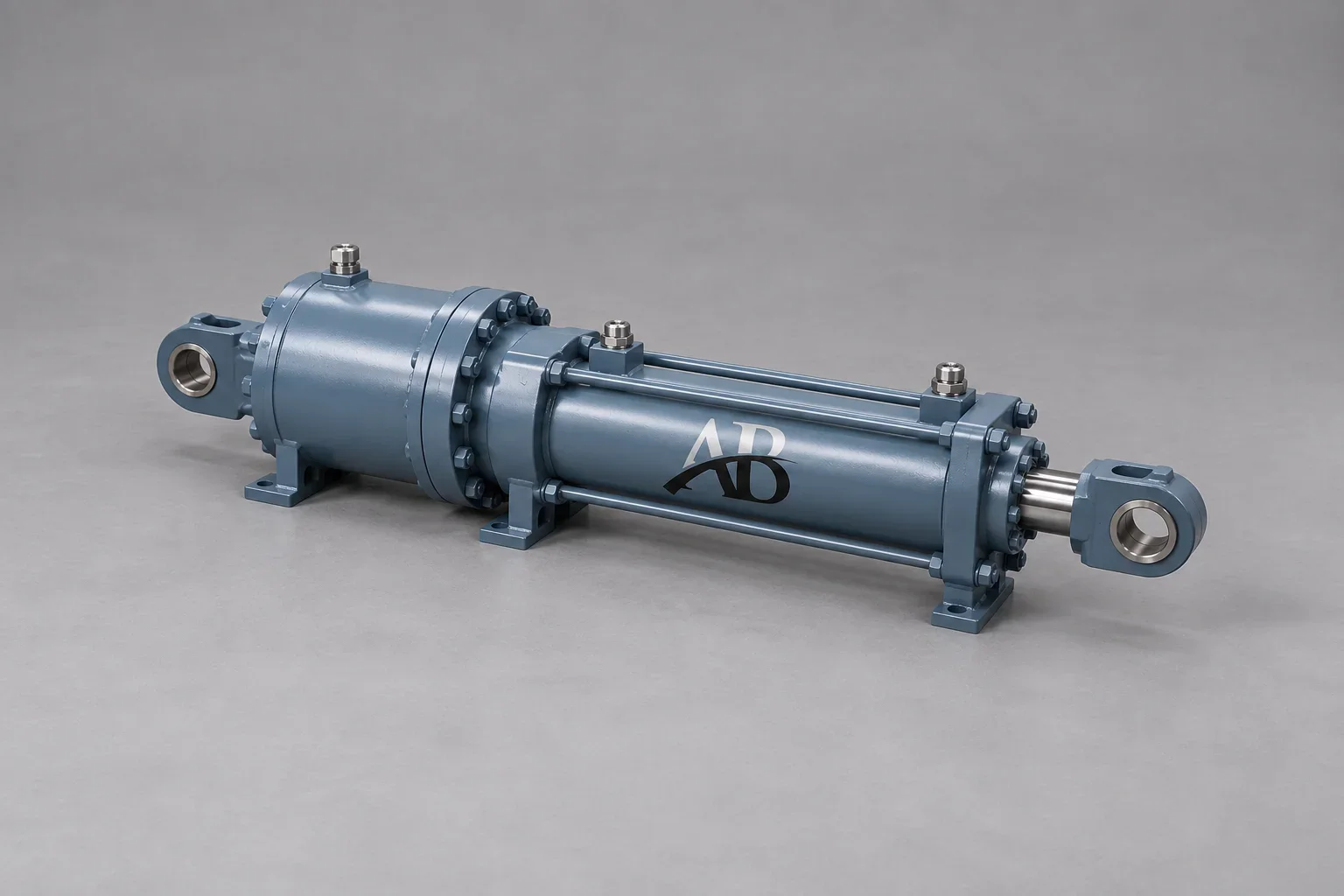

Spring Out Cylinder
- Bore Size
- 80-300 mm
- Stroke Length
- 100-600 mm
- Working Pressure
- 160-250 bar

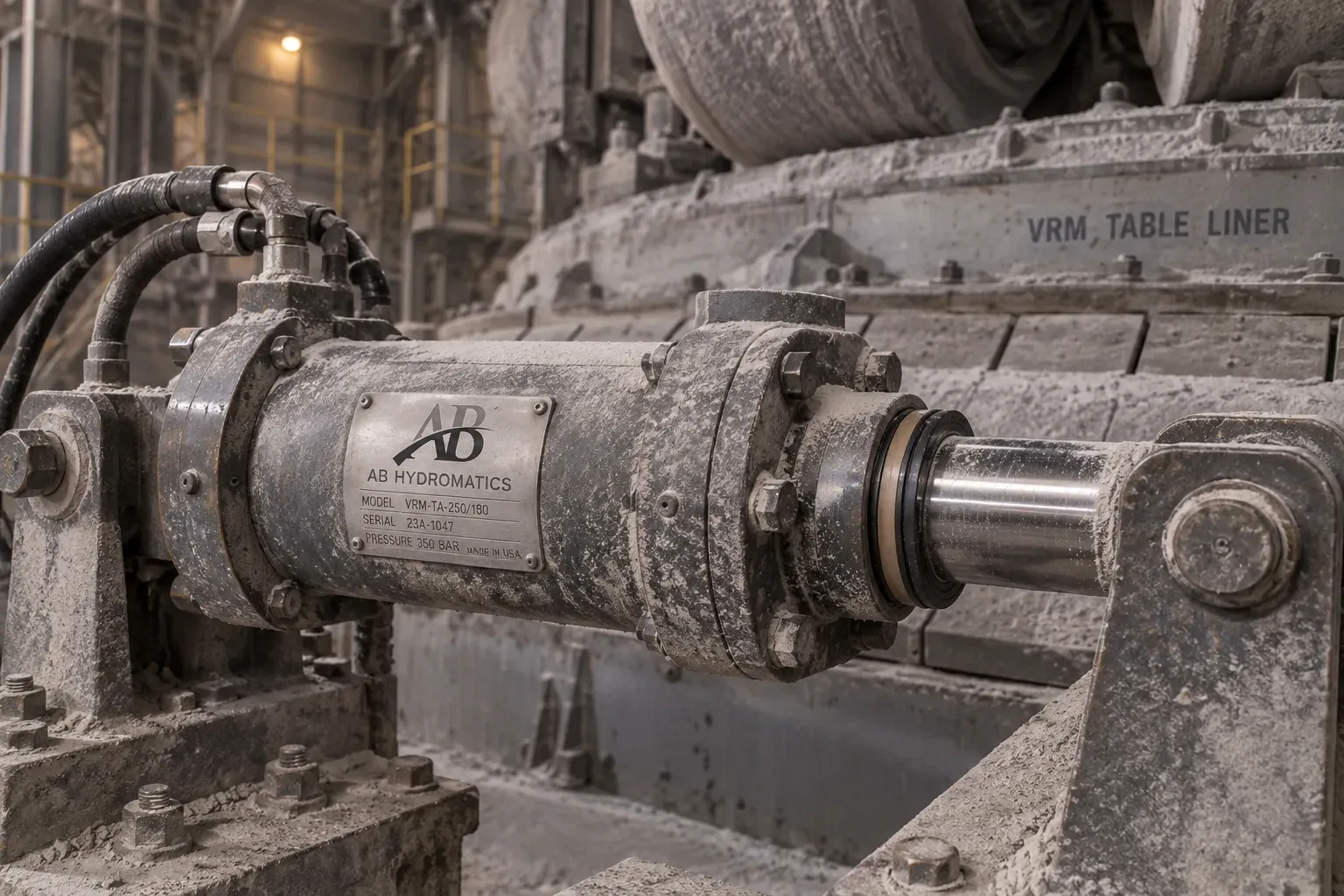

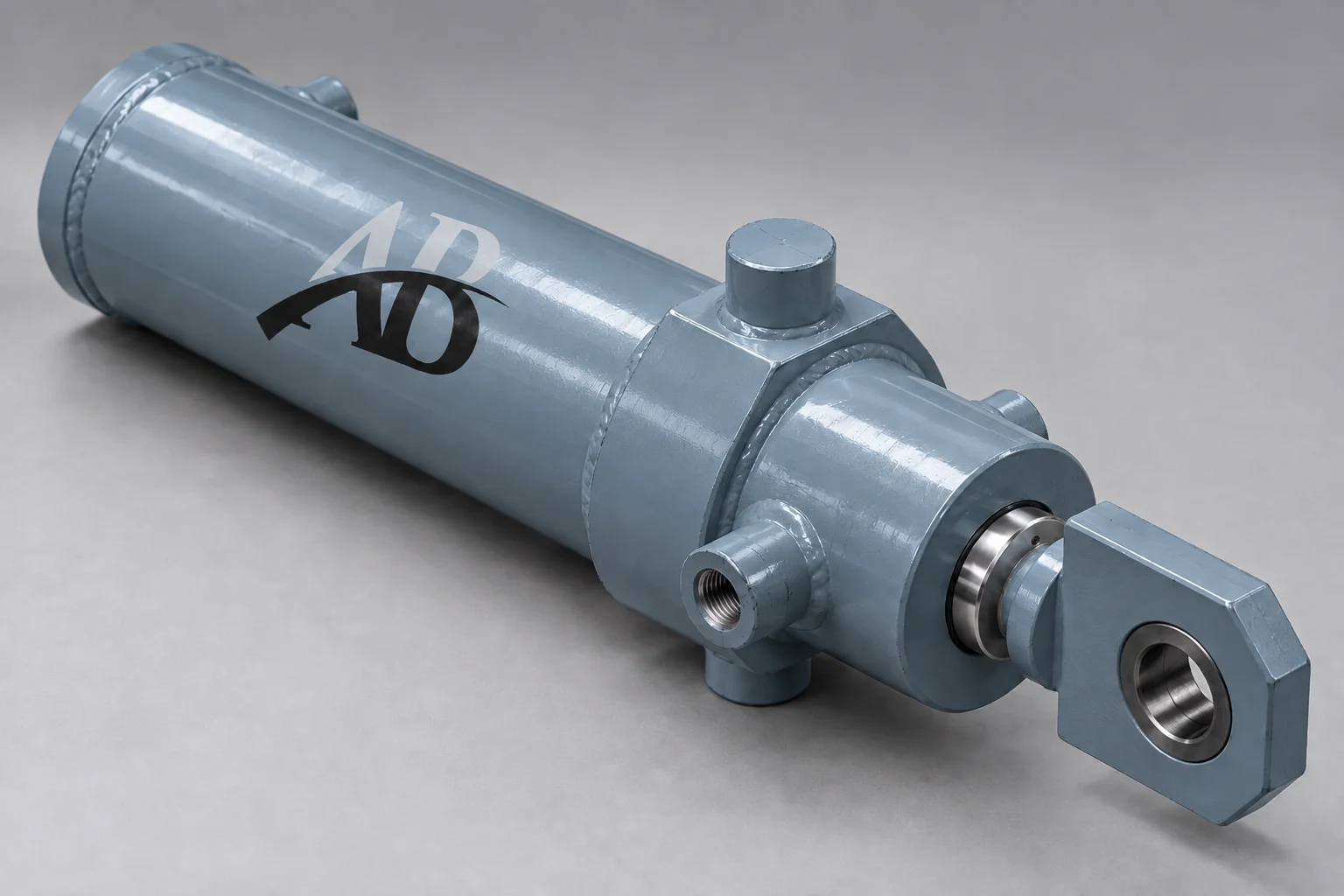

Grinding Path Cylinder
- Bore Size
- 100-350 mm
- Stroke Length
- Up to 800 mm
- Working Pressure
- 200-320 bar

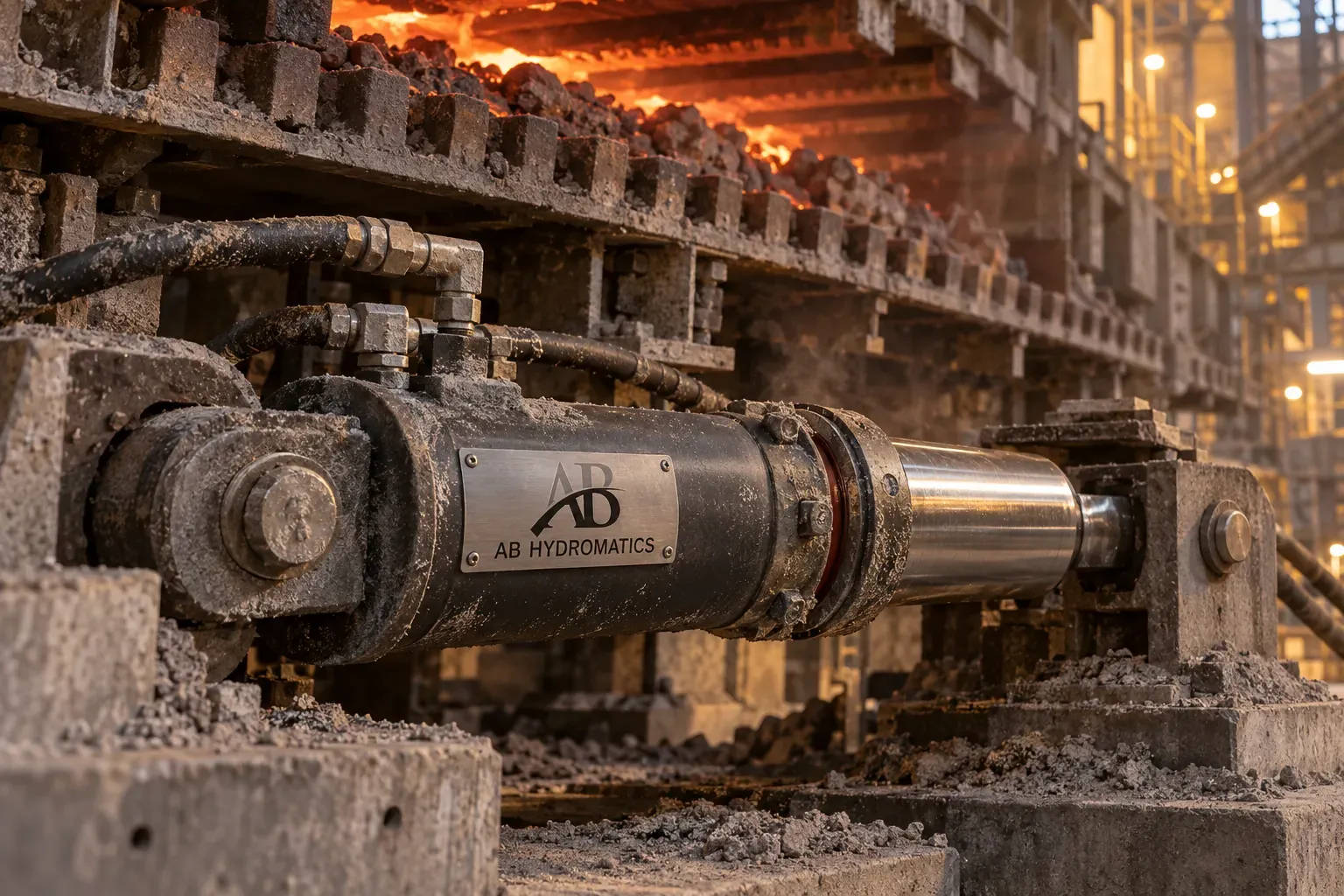

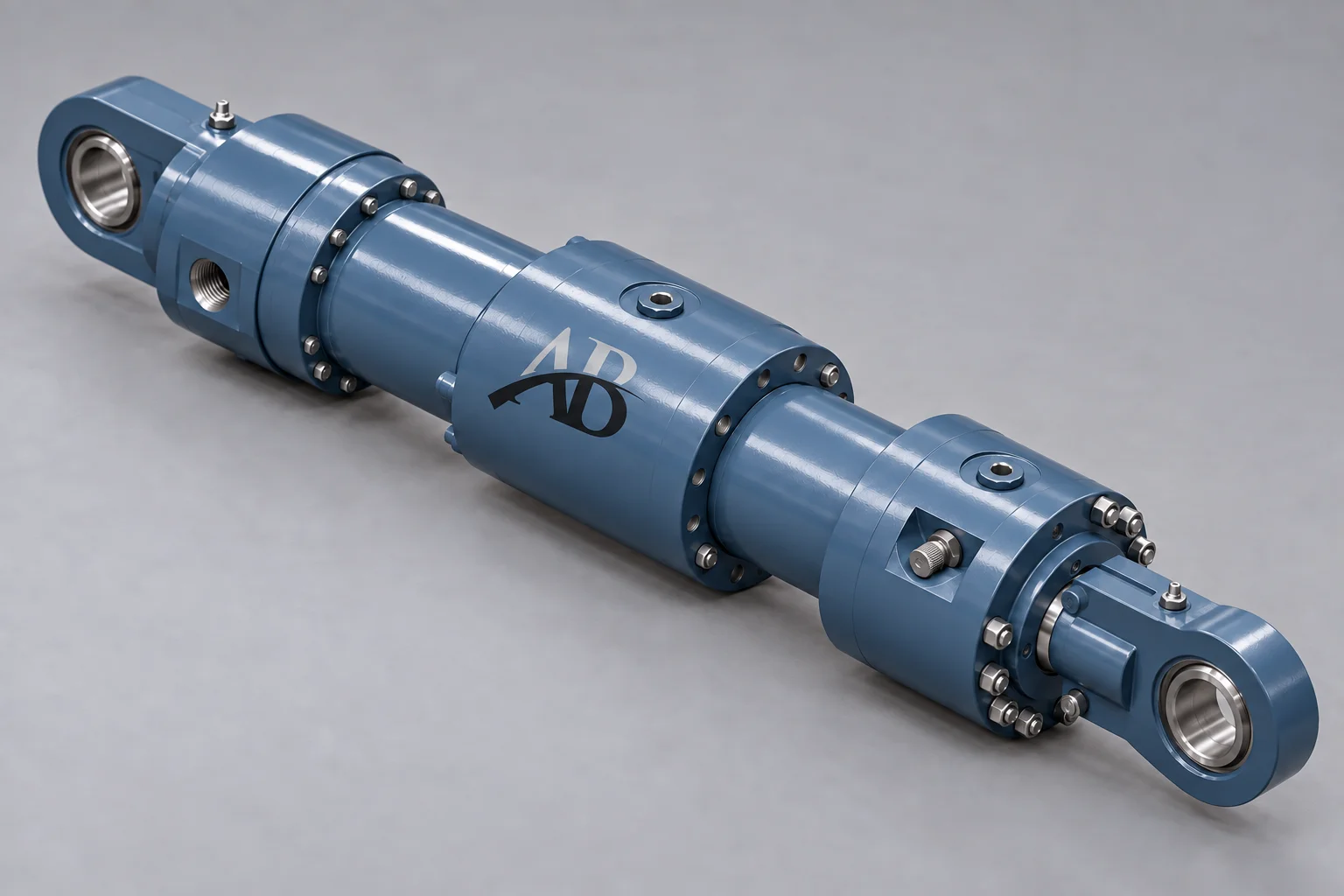

Cooler Cylinder
- Bore Size
- 80-300 mm
- Stroke Length
- 100-600 mm
- Working Pressure
- 160-300 bar

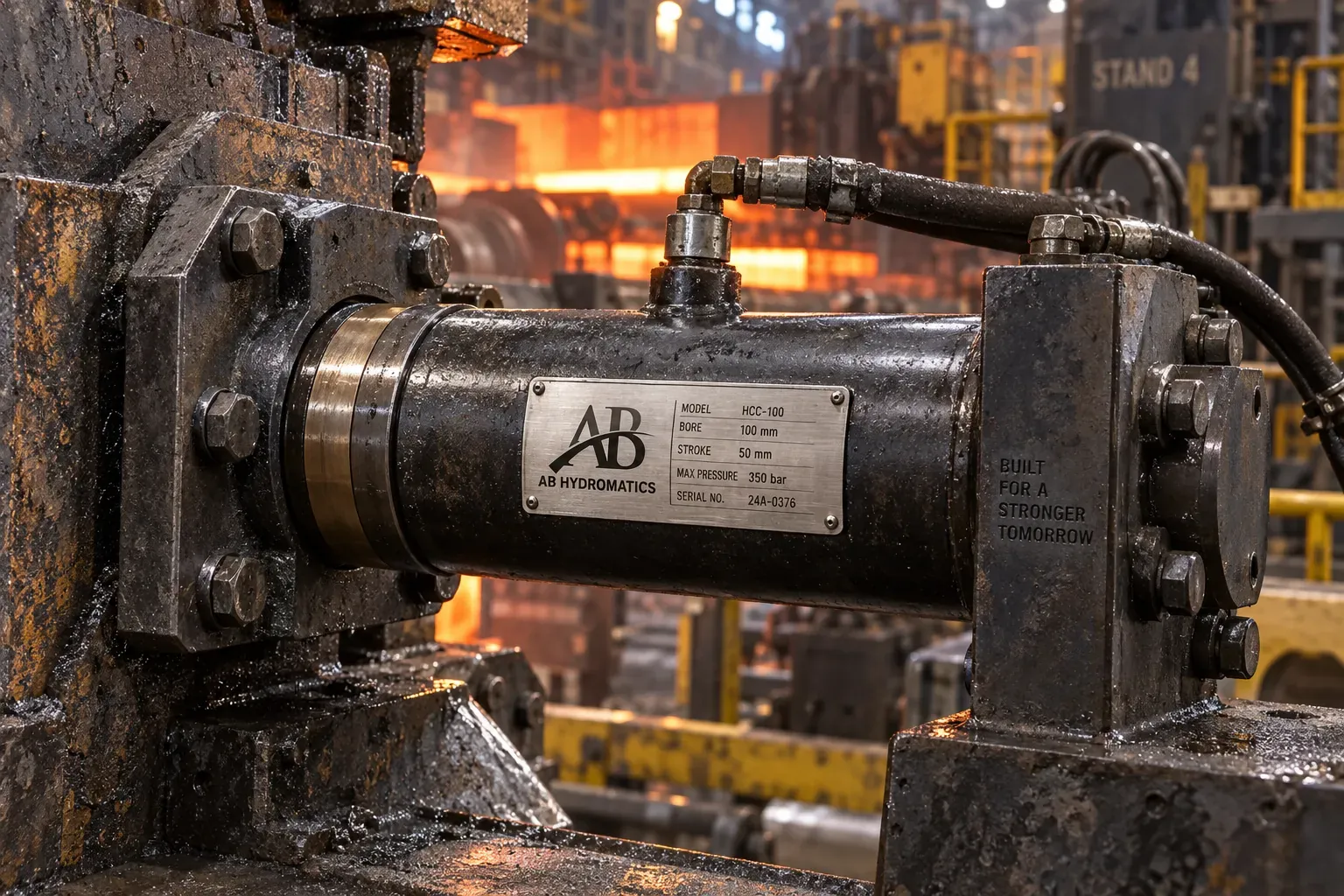

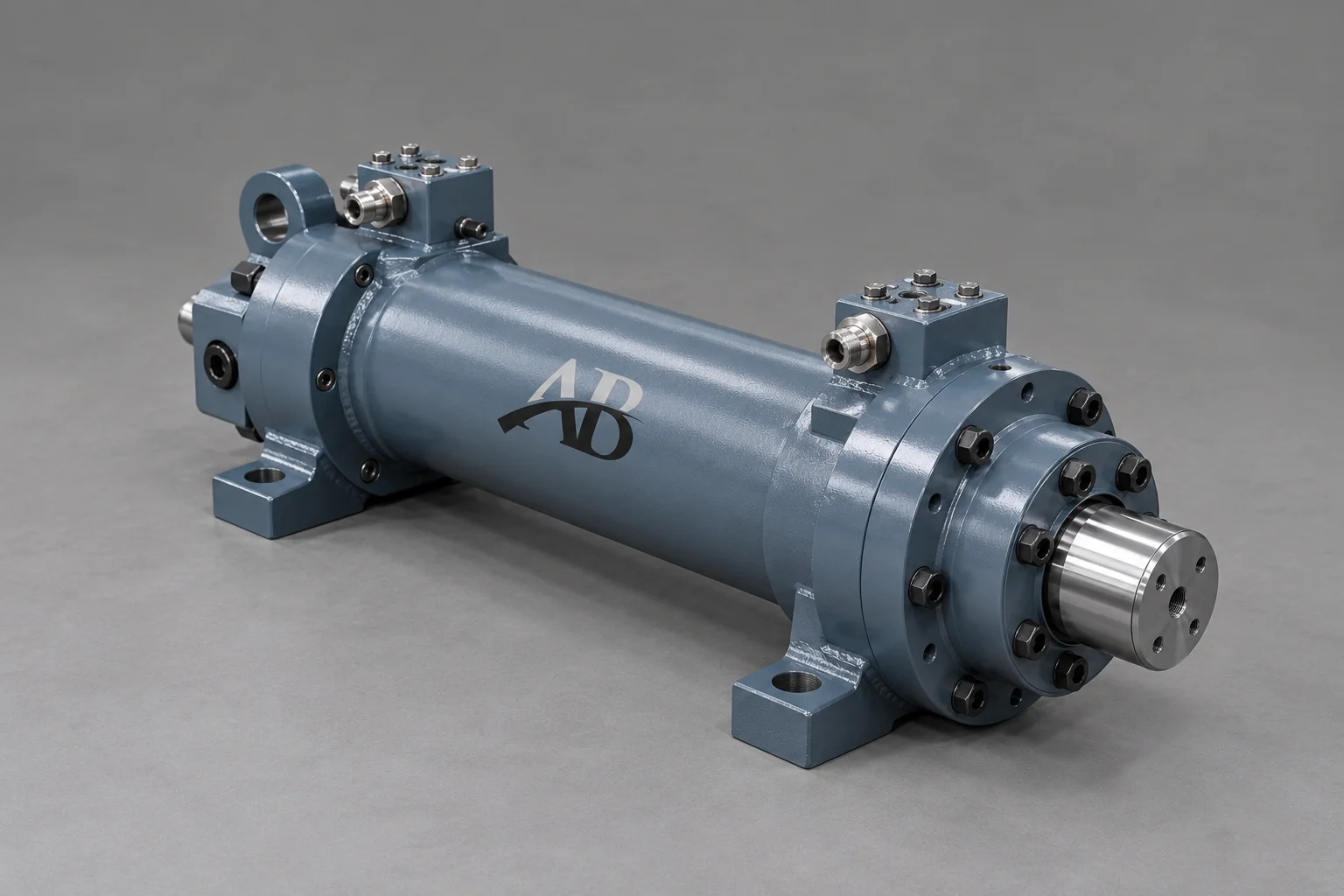

Clamping Cylinder
- Bore Size
- 100-400 mm
- Stroke Length
- 50-400 mm
- Working Pressure
- 250-400 bar

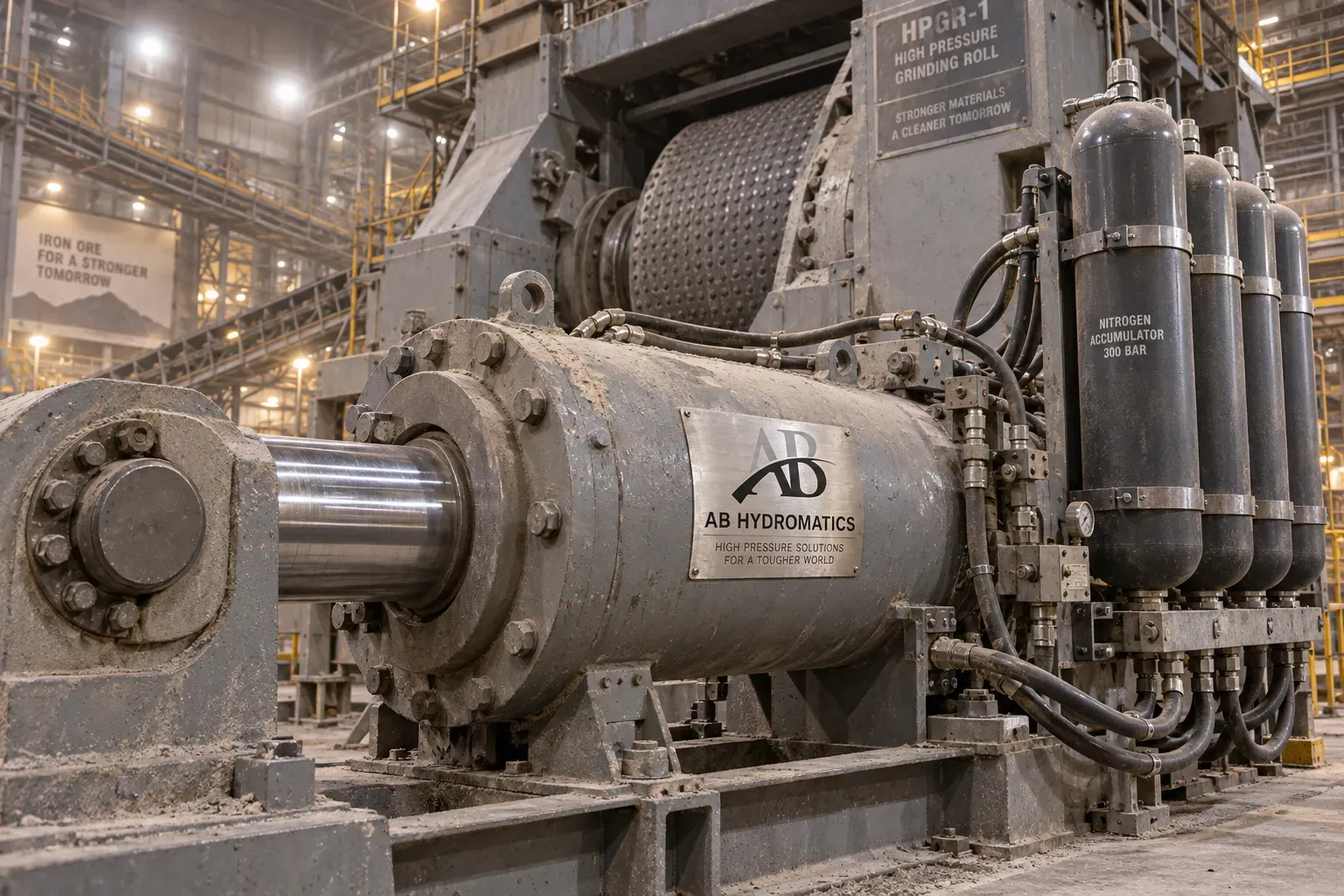

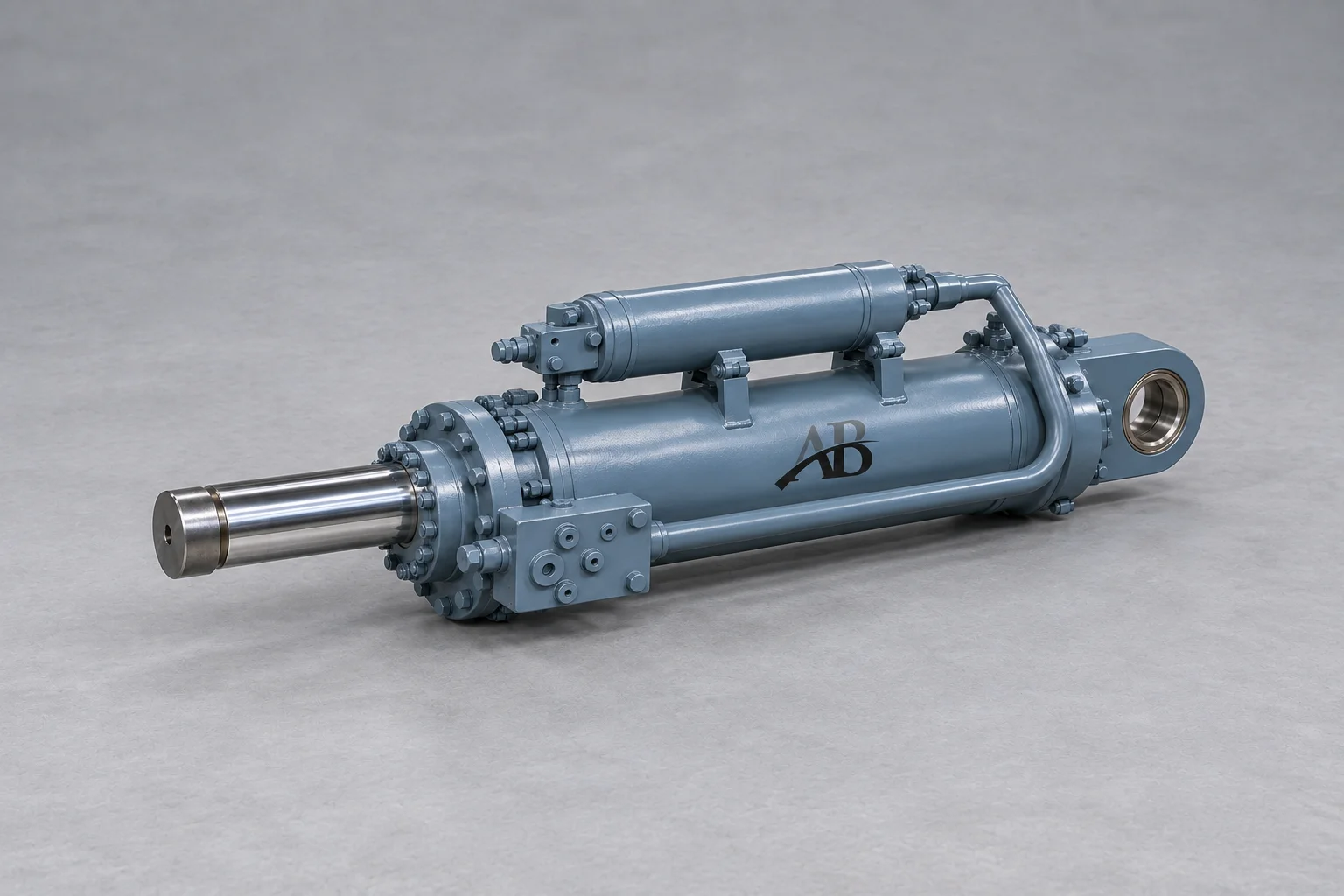

Roller Press Cylinder
- Bore Size
- 250-700 mm
- Rod Diameter
- 180-500 mm
- Stroke Length
- 150-600 mm

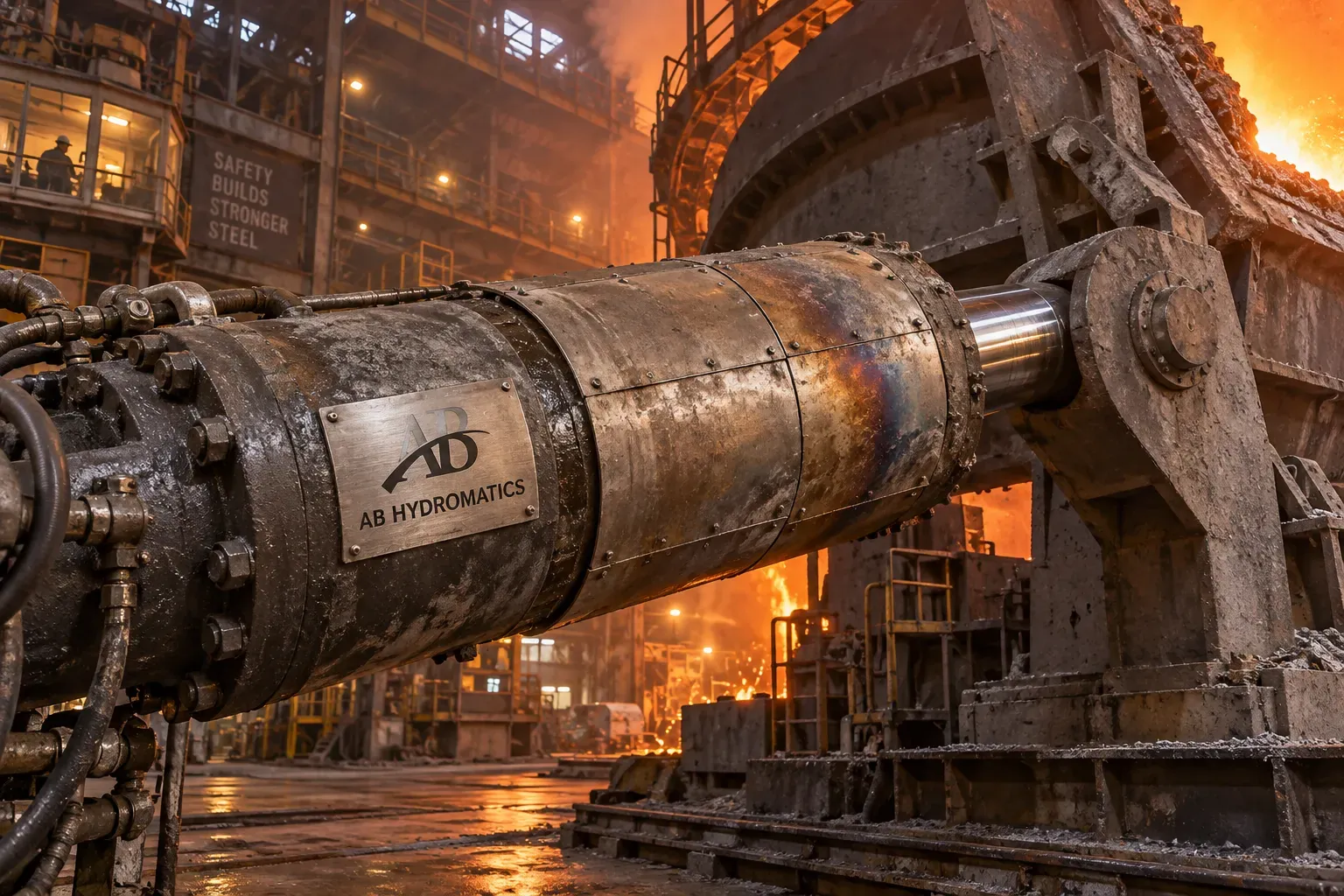

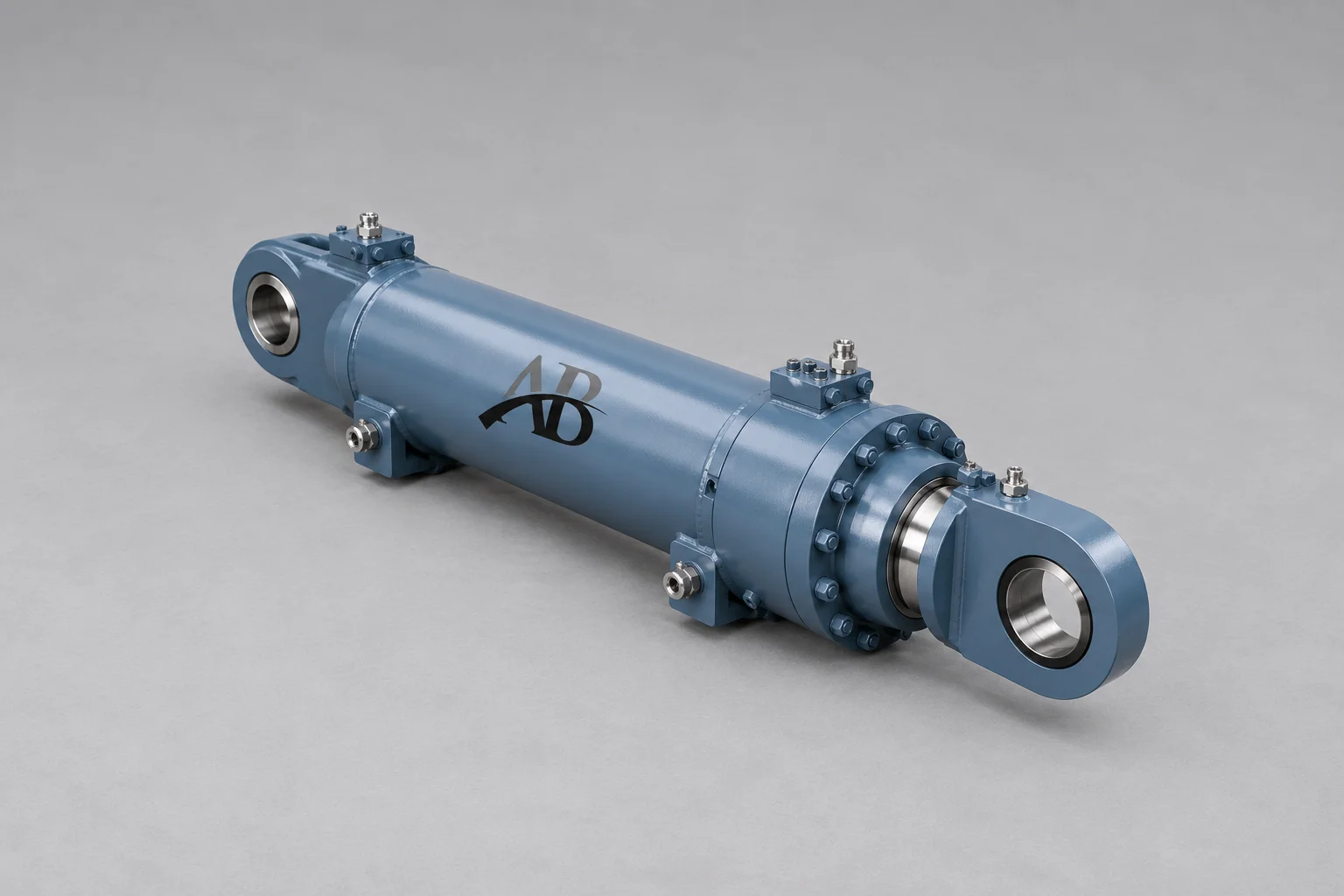

Converter Lifting Cylinder
- Bore Size
- 250-650 mm
- Stroke Length
- 1,000-4,000 mm
- Working Pressure
- 210-350 bar
