Cooler Cylinder
Application-engineered for demanding process-plant duty.

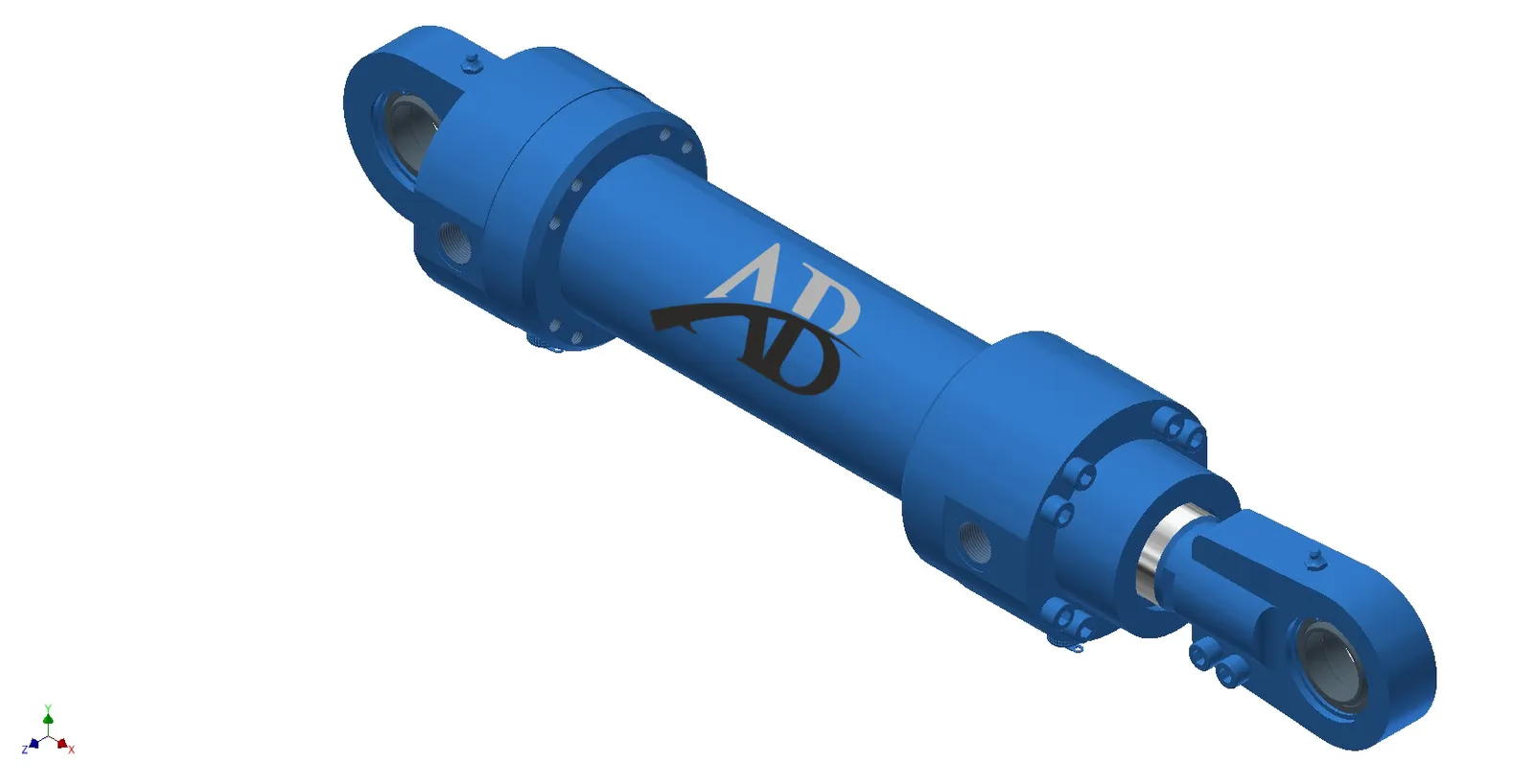

Cooler cylinders drive the reciprocating grate plates and control undergrate airflow dampers in clinker coolers, handling intensive continuous cycling directly beneath glowing clinker.
6 engineering parametersAlternate Views:
Application detail
Designed around plant conditions.
High-temperature seal packages rated up to 150°C and protective stainless steel rod sleeves guard against radiant heat and highly abrasive clinker dust.
Final bore, stroke, mounting, material and seal selection are confirmed against the approved drawing and operating duty.
Technical range
6 parametersCooler Cylinder specifications
| Parameter | Indicative specification |
|---|---|
| Bore Size | 80-300 mm |
| Stroke Length | 100-600 mm |
| Working Pressure | 160-300 bar |
| Duty | High-temperature, dust-laden, continuous cyclic |
| Seals | High-temperature seal kit + protective rod boot |
| Mounting | Trunnion / clevis |
