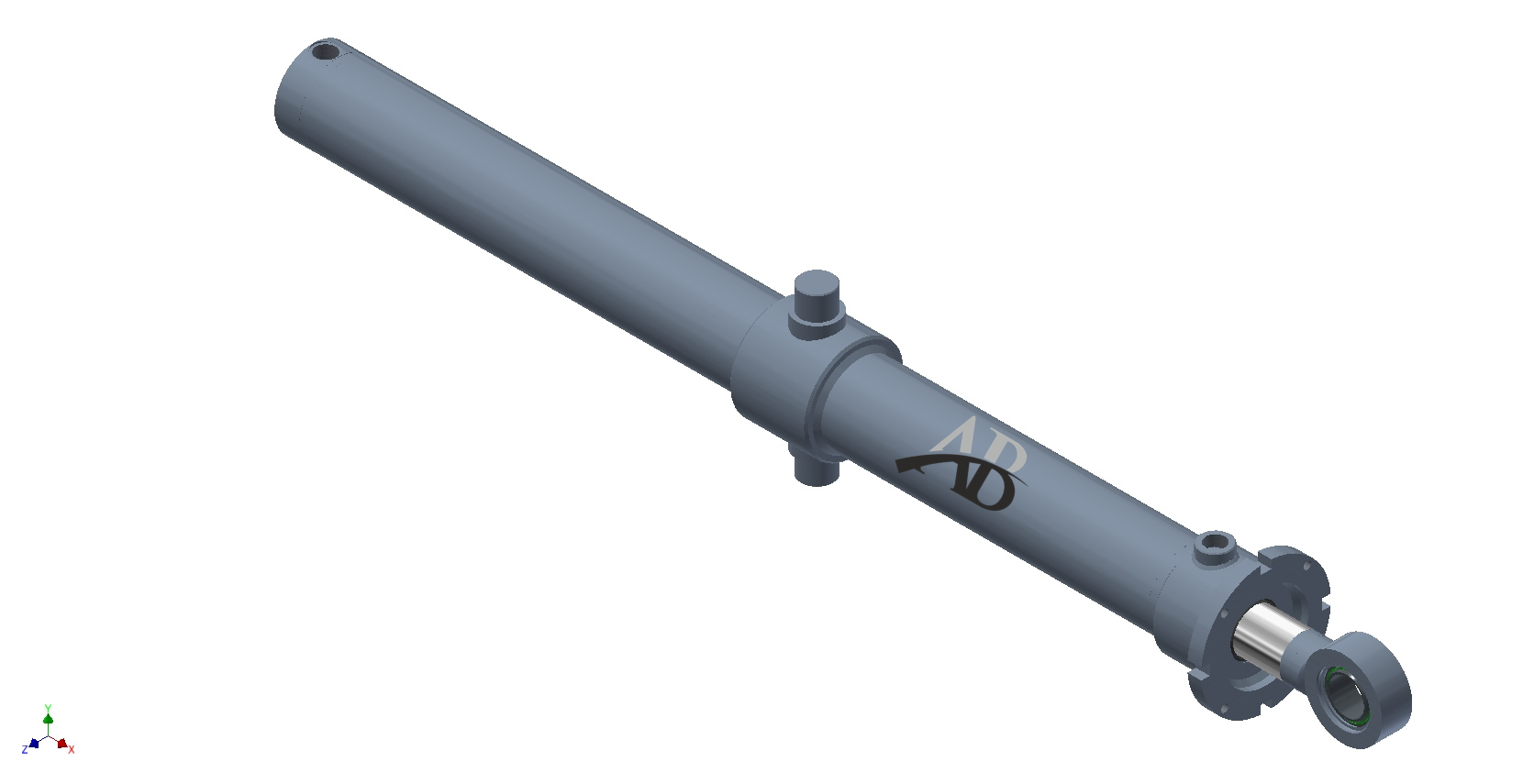

Stacker Cylinder
Application-engineered for demanding process-plant duty.
Stacker and yard-handling cylinders actuate boom luffing, slewing, and tripper-car travel motion on machines managing stockpiles of coal, limestone, iron ore, and clinker.
6 engineering parametersAlternate Views:
Application detail
Designed around plant conditions.
Built for outdoor weather-exposed duty with multi-layered nickel-chrome rod plating, spherical plain bearings, and integrated counterbalance load-holding valves for safety against hose failure.
Final bore, stroke, mounting, material and seal selection are confirmed against the approved drawing and operating duty.
Technical range
6 parametersStacker Cylinder specifications
| Parameter | Indicative specification |
|---|---|
| Bore Size | 100-400 mm |
| Stroke Length | Up to 3,000 mm |
| Working Pressure | 160-320 bar |
| Rod Surface | Hard chrome plated, corrosion-resistant |
| Safety | Integrated pilot-operated check & counterbalance |
| Mounting | Clevis with spherical plain bearing |
