Plant cylinder subtype

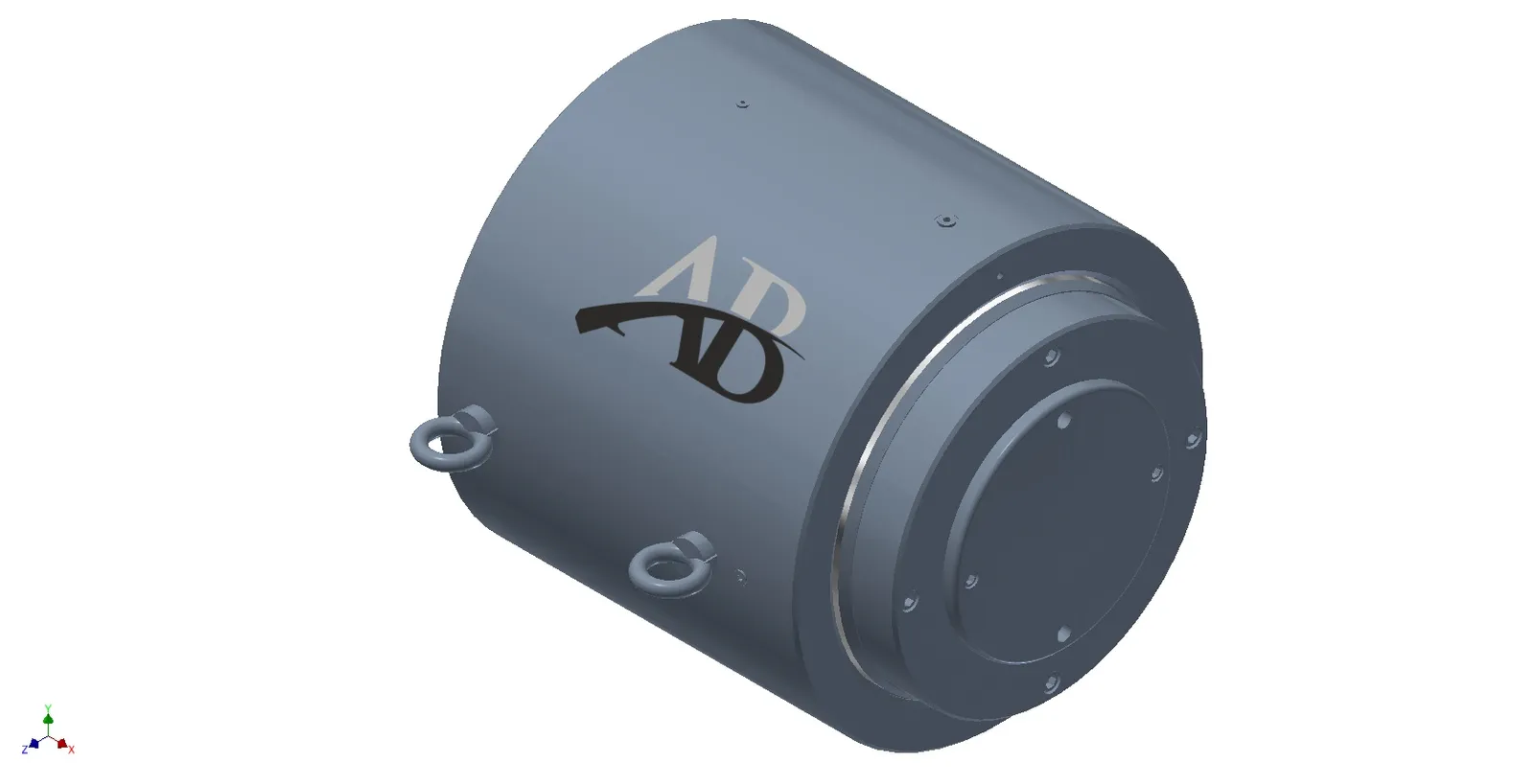

Plunger Cylinder
Application-engineered for demanding process-plant duty.
Plunger-type ram cylinders deliver single-acting, ultra-high linear push force for hydraulic briquetting machines, scrap balers, extrusion presses, and compaction stations.
6 engineering parametersAlternate Views:
Application detail
Designed around plant conditions.
The precision ground and polished ram eliminates return-stroke seals, operating inside an extended gland with heavy bronze guide bushings to resist severe eccentric side loads.
Final bore, stroke, mounting, material and seal selection are confirmed against the approved drawing and operating duty.
Technical range
6 parametersPlunger Cylinder specifications
| Parameter | Indicative specification |
|---|---|
| Bore Size | 100-500 mm |
| Stroke Length | Up to 2,000 mm |
| Working Pressure | Up to 350-700 bar |
| Type | Single-acting, plunger (ram) type |
| Rod Guiding | Extended gland with bronze wear band |
| Mounting | Heavy foot / front flange |
