Plant cylinder subtype

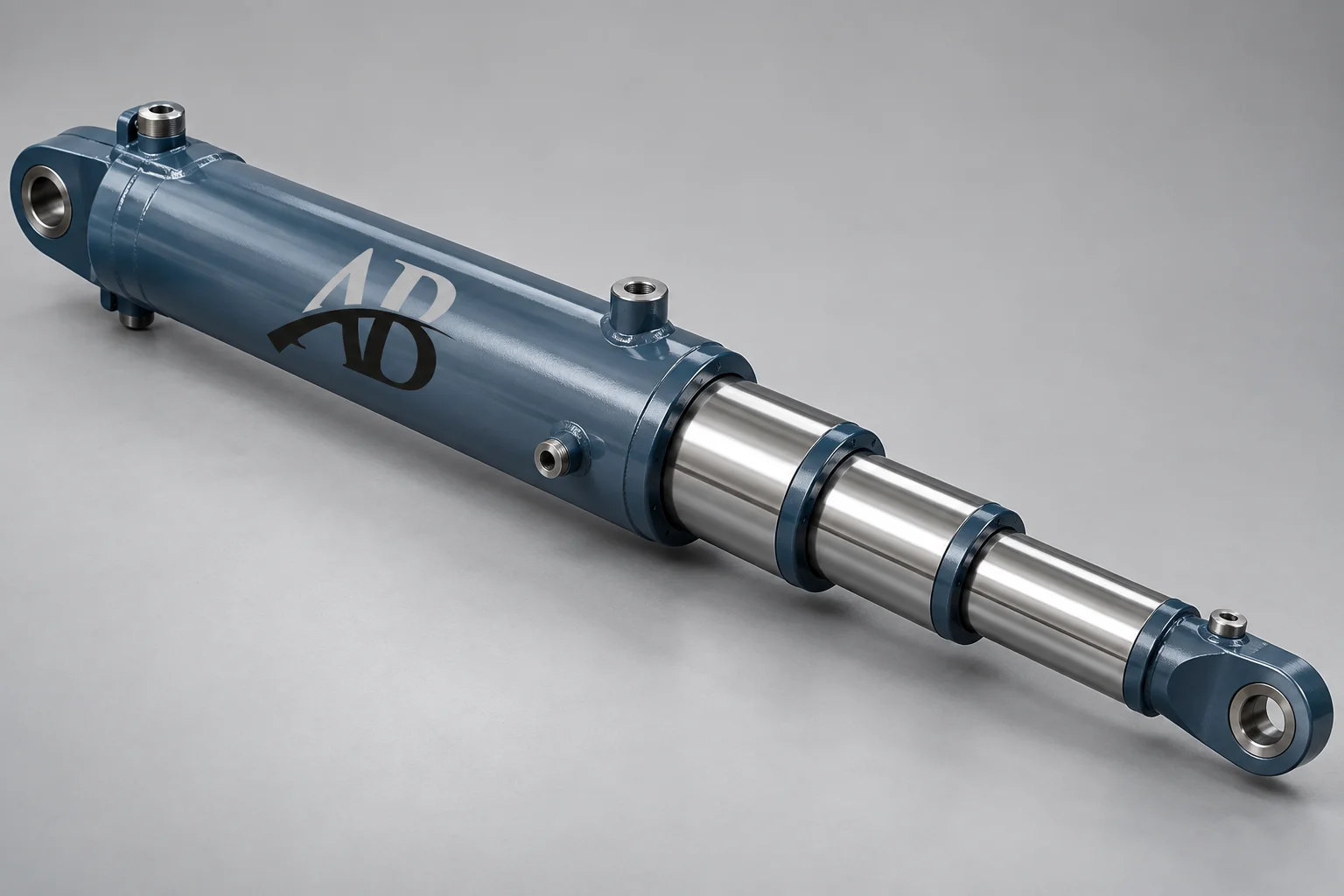

Truck Unloader Cylinder
Application-engineered for demanding process-plant duty.
Heavy-duty truck unloader cylinders power drive-on tipping platforms for 60 to 100-tonne trucks delivering raw limestone and solid fuel to cement plant receiving hoppers.
6 engineering parametersAlternate Views:
Application detail
Designed around plant conditions.
High tensile chrome-plated rods, induction hardened surfaces, and high-flow porting allow fast cycle times while maintaining absolute stability under uneven axle loads.
Final bore, stroke, mounting, material and seal selection are confirmed against the approved drawing and operating duty.
Technical range
6 parametersTruck Unloader Cylinder specifications
| Parameter | Indicative specification |
|---|---|
| Bore Size | 200-500 mm |
| Stroke Length | Up to 3,500 mm |
| Working Pressure | 200-350 bar |
| Type | Telescopic or single-stage heavy duty |
| Rod | Hard chrome plated, high tensile |
| Mounting | Trunnion, pin-and-clevis |
